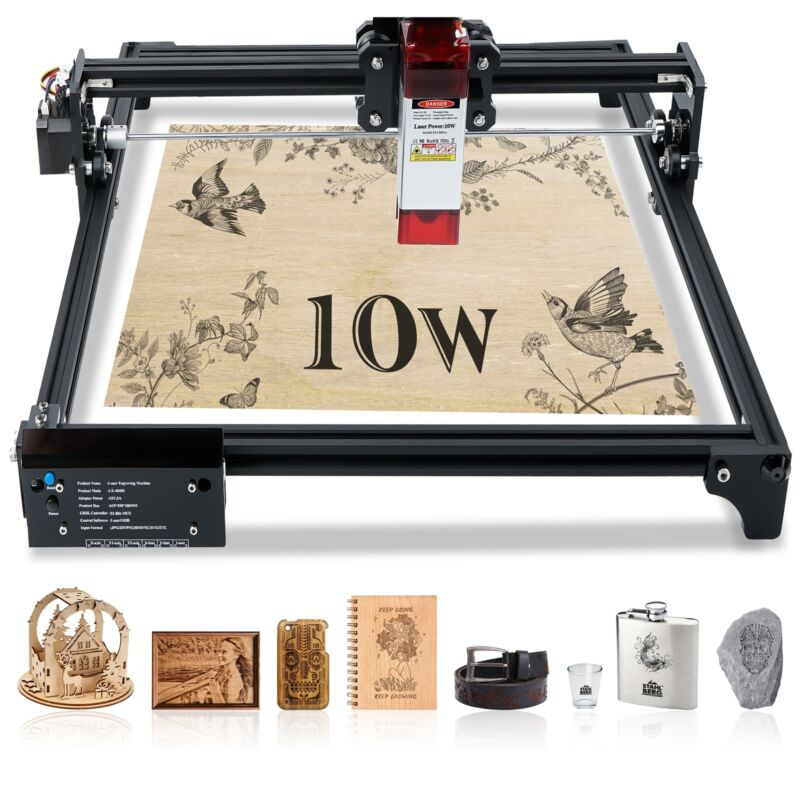

10W Actual Output Diy Laser Engraving Cutting Machine Desktop Engraver 40x40cm

Motherboard:32 bitsmotherboard with 32 Bits MCU Firmware:GRBL1.1 OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux /Phone(Bring yourown software) Power Supply:12V 5A60W USB Interface：Type C Electrical Power ：80W Actual Power:10W Wavelength:450nm Input Format: NC, BMP, JPG, PNG, DXF, etc. Carving Area:X: 400MM x Y: 400MM Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, its about 0.81um pixel precision ) Tip:The gantry structure does not need to be assembled. The others are all parts and need to be assembled by yourself. We provide instructions and video tutorials. Please feel free to contact us if you have any questions.

10W Actual Output Laser:80WEffective Power Optical power output:10W Current:3.8A Laser tube:2xLD+FAC+C-Lens Laser wavelength:445nm±5nm Beam shape:Dot ( Fixed Focus ) Operating voltage:DC 12V Focus:0.08*0.08 PWM/TTL input:0-5V Input interface:XH2.54-3Pin (+,-, PWM/TTL) TTL output power:> 1K HZ output power = continuous power x 40% Working frequency:
