Neje 3 Pro E30130 Laser Engraver Cutter Engraving Machine

UK Sales And SupportNext Day Delivery Highlights Professional and Advanced Engraving EquipmentNEJE 3 Pro is a professional laser engraving and cutting equipment. The E30130 module laser cutter and engraver machine has 0.06x0.06mm focus, 5.5W laser module, and 7.5W pulse output power. It also has PWM power modulation and a double ball high life fan.Large Engraving Area and Cylindrical Objects EngravingThe 400x410mm area can meet most of the engraving needs. Through the extension rod provided by NEJE, you can get a working area of 400x1040mm area. NEJE 3 Pro laser cutter and engraver machine can engrave huge diameter cylinders by adding rotating attachments and raising the height of the machine body.

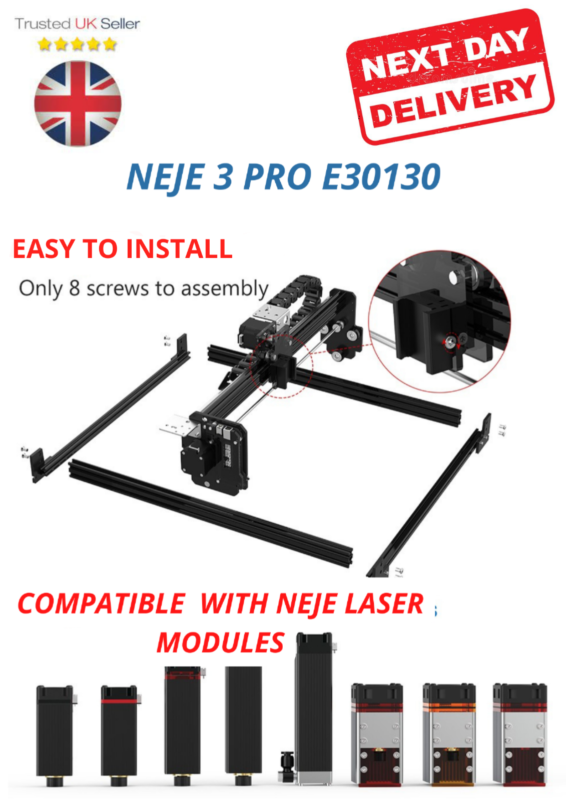

Wide Software CompatibilityNEJE 3 series all support APP control, you can use the APP and other software to obtain top-level engraving works. NEJE 3 Pro with E30130 module has 32-bit 200Mhz MCU, and provides OTA upgrade service. NEJE 3 Pro laser engraver supports Win 7/Win 8/Win 10 and also supports Android, iOS, iPadOS, macOS, HarmonyOS, and the engraving file format supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.More Expansion FunctionNEJE 3 Pro is equipped with automatic air assist, automatic smoke control components, and door expansion function, and is compatible with most NEJE series modules. The expansion function is perfectly suitable for lightburn, laserGRBL, and NEJE software APP, it can complete a variety of complex processes at one time, enough to build a perfect laser engraving and cutting system.Solid and Easy Installation Structure DesignHigh precision all-aluminum alloy and PC material hybrid frame design makes the laser cutter and engraver machine more reliable and improves engraving accuracy. The entire engraving machine adopts a modular design, install 8 screws to get started, which is convenient for users to assemble, repair, replace and update machine parts.

Frame Size (L - W - H): 550 x 540 x 200mmWorking Area( X - Y): 400 x 410mm, Extends to 400x1040mmDot Pitch: 0.075mm, 338dpiPixel: 5333 x 5466 pxDrive accuracy: 0.01mmMax Move Speed: X:1000mm/s(with module 204g), Y:750mm/sFrame Material: High precision All-aluminum alloy and PC material hybrid frameStructure Technology: Y-axis fit adjustable design, X-axis stress fit assemblyStructure Feature: Fit, high precision, stable, smooth, no oil, easy maintenance, long lifeVertical Carving: Yes (45 Degree)Motor Size: Y: 42 x 42 x 40mm, X: 42 x 42 x 34mmMotor Drive Current: 0.9AModule Height Adjuster: YesHome: Front leftOrigin: Front leftCompatible Modules: B30635, N30820, N40630, N30610, A40630, A30130, A40640, F30130, E30130, E40.Rotary Jig: Supports all stepper motor driven jigsMCU: 32-bit 200MHz MCU (Top 32-bit MCU)BLE APP Control: YesMEMS Protection: YesM7 Control: Yes (For building automatic smoke extraction systems)M8 Control: Yes (For building automatic air assist systems)Door Control: Yes (Emergency Suspension and Safety Door Control)Limit Switch: YesON/OFF Switch: YesInput: DC 5.5 2.1, 12V 5A (Power Adapter)System: Win 7/Win 8/Win 10, Android, iOS, iPadOS, macOS, HarmonyOS.File Format Supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.OTA Upgrade: YesNEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use.Lightburn and LaserGRBL: Yes, improved low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction.Off-Line Working: Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone.Repeat Engraving: Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work.NEJE Android APP: YesNEJE iPhone/iPad APP: YesNEJE Cloud Gallery Service: YesSoftware Download: Https://neje.wikiLaser Module: NEJE E30130Focus: 0.06x0.06mmFocus Method: Fixed (about 10mm from the bottom)Optical Power: CW 5.5W+, Pulse 7.5WWavelength: 450nmWeight: 204gModule Size: 30x30x130 mmInput: DC 12V 3AInterface: 4pin PH2.0Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc.Power Control: PWM Power ModulationFan: Double ball high life fanDrive: NEJE smart quiet drive, built-in static elimination technologySurge Protection: YesSmart Feedback: YesTemperature Feedback: YesTemperature Control: 45 Degrees CelsiusAir Pump: 0.5-1.5mpa clean airAir Interface: 4mm PVC tracheaReplaceable Lens Design: YesOriginal Registered Brand: Yes
