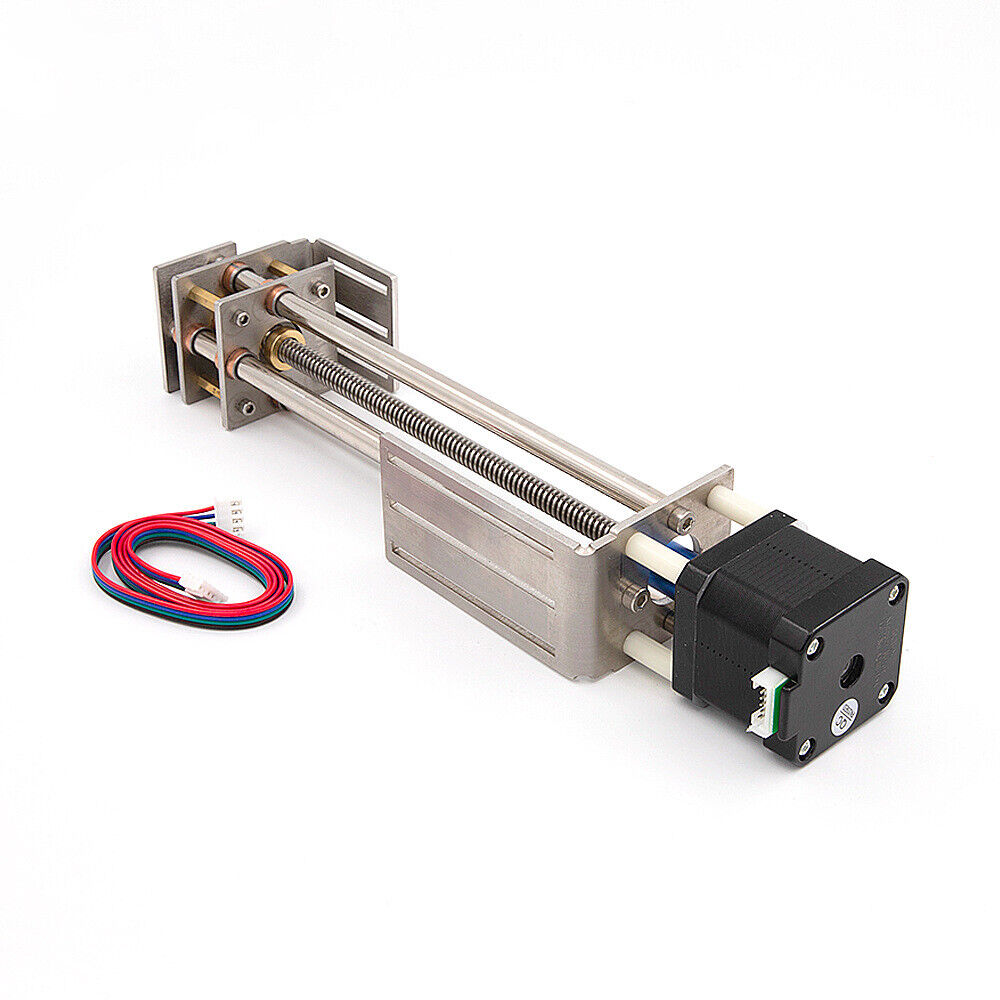

150mm Z Axis Sliding Working Table For Cnc Woodworking Engraving Machine T8-Z150

150mm Z Axis Sliding Working Table for CNC Woodworking Engraving Machine T8-Z150 Product Description Feature: 1. Extra support unit to enhance stability 2. Special made motor 3. High-quality ball screw 4. With this Z-slide module installed, the laser engraver can become a note plotter or a 3-figure CNC engraver 5.

This module can be installed on its own two-axis machine, into a three-axis machine 6. The mounting holes are carefully designed, adjustable and easy to install on other equipment 7. The slider can be mounted, laser head, engraving knife or other equipment Specification: Name: Z-axis Sliding Table Model: T8-Z150 Material: Stainless Steel Glide Path: Linear Guide Effective Stroke: 150mm Power Supply: 12V Drive Control Panel: 3 Axis CNC Control Panel Motor Used: Stepper motor, 2-phase 4-wire Package Weight: 1KG Package size: 1.5cmx11cmx9.5cm
