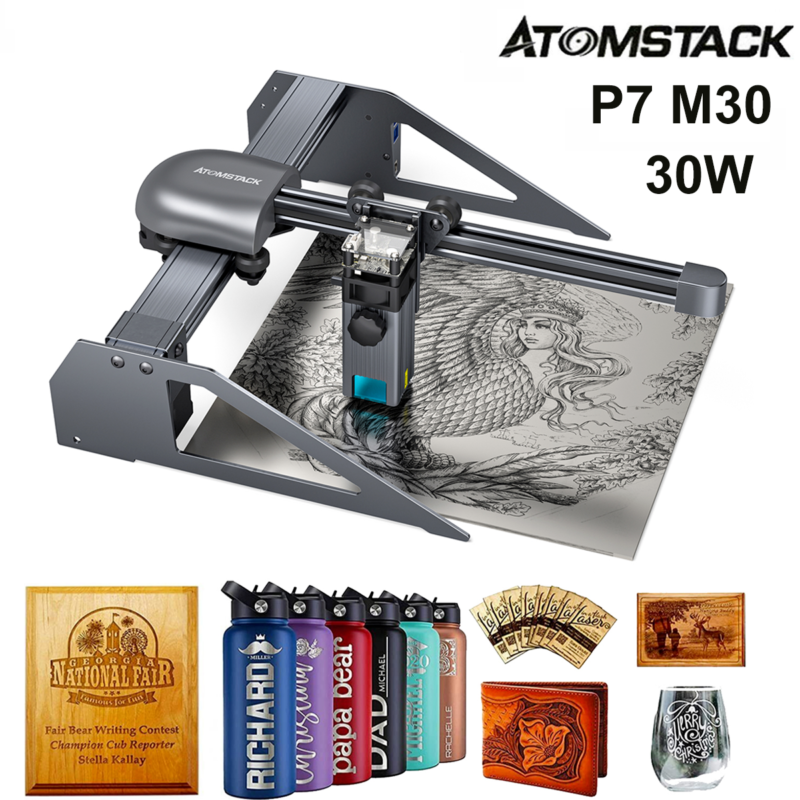

Atomstack P7 M30 Laser Gravur Maschine 30W Tragbarer Lasergravierer Laser Cutter

Atomstack P7 M30 30W Portable Laser Engraving Machine 1. Eye-protection flame-retardant filter panoramic glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.2.

Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.3. Upgraded version of high-performance fixed-focus laser: Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.03*0.05mm, which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser.4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.5.

Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 200*200mm large area engraving interval can meet your various engraving needs.6. Newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.0W, the laser focus area is reduced to 0.03*0.05mm, the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic; Can directly engrave mirror stainless steel metal and ceramics.7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.8.

New laser with knob: It is more convenient and quick to adjust the height of the laser.9. The new laser is equipped with a horizontal gyroscope: it stops working immediately when it is tilted to ensure your safety10. Colorful gift box packaging: more beautiful and more convenient to give gifts Product Description: Item model number: ATOMSTACK P7 M30Engraving area: 200*200mmEngraving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;Electric power output: 30WLaser power output: 4.5-5.5WWave Length: 445 ± 5nmEngraving accuracy: 0.01mmFocusing method: fixed focus laser, no need to focusLaser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system.Input Format: NC, BMP, JPG, PNG, DXF, etc.Data transmission method: USB connection.Input Voltage: AC100-240V, 50/60HzOutput Voltage: DC12V, 5ACertification: CE FCC RoHS FDA PSE P7 M30 LASER ENGRAVER PACKAGE:Assembly block *4Laser*1Laser slide*1Foot pad foam*4USB cable*1Open wrench*1Y-axis belt assembly*1Marker *1Cable tie*5Screw*4Hexagonal Wrench*2Wood chips*3Fixed focus film*1Acrylic sheet*3Cutting pad *1Lower support foot*1Upper support foot*1Control box*1X axis assembly*1Y axis assembly*1Power adapter*1Power cord*1
