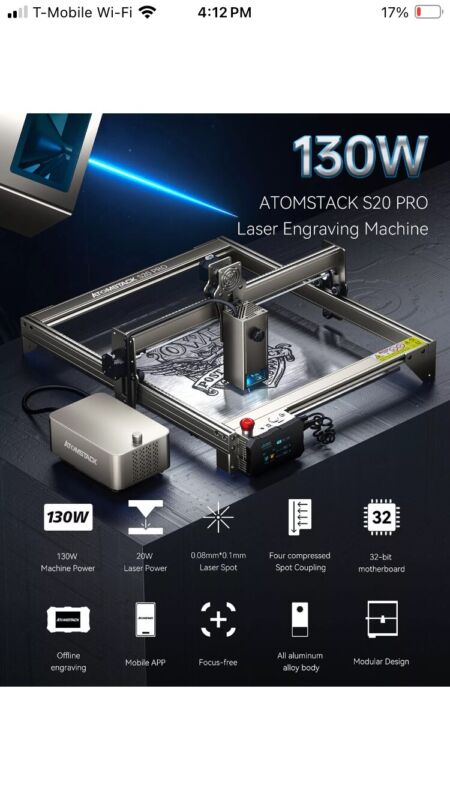

Atomstack S20 Pro Laser Engraver 130W Accurate Cnc Diy Cutting Engraving Machine

Personally used this unit about a dozen times for a project. Extras include the full rotary unit for lasing cylinders, a laser bed, a containment unit with exhaust tube and fan. All in excellent shape. Note that the protective cover from the control pad has not even been removed. Below is the manufacturer’s description and specs: 1, Super high power: World's first 20W optical power laser engraver.

The laser output power soars up with the latest generation of four 6W laser coupling technology, is able to cut off 12-15mm thick tungsten board as well as the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet. 2, The product comes standard with the F30 Pro upgraded air assit kit: the cutting capacity is greatly improved, as well as the cutting accuracy and quality is optimized to a considerable extent. 3, Newly upgraded Atomstack self-developed 32-bit motherboard: built-in 256-bit color scale, achieving the finer engraving result and higher contrast effect. Now your projects are no longer in black only! 4, Newly designed laser: Tired of focusing with the sheet?

Air assist is not perfect looking? Surprise, the new S20 laser has a built-in tool-free focusing module as well as a built-in air-assist system, enjoy the concise beauty and cordless freedom. 5, Atomstack's self-developed mobile phone APP: Atomstack's self-developed mobile phone APP is now available in major Android application markets and Apple APPstore (The APP is downloadable via scanning the QR code from the manual as well). Mini size and multi-function, bringing you a fresh control experience, come and have a try! 6.The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving .

Reduce the cost of your goggles and the inconvenience of wearing goggles. 7.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 20-30 minutes. 8、Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

9.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc. 10.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 400x400mm large area engraving interval can meet your various engraving needs. 11.Upgraded compression spot coupling technology: ultra-fine laser focus area is reduced to 0.08*0.1mm, high-density laser can easily cut 25mm thick wood, 30mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine. 12.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling.

The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable. 13.New laser with knob: It is more convenient and quick to adjust the height of the laser. 14. Support offline engraving: ATOMSTACK S20 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer. 16. The laser sintering temperature is up to 2400℃ 17. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer 18.

Stopper: Yes 19. Reset switch: Yes 20. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 400*850mm super large engraving size Product description: Item model number: ATOMSTACK S20 PRO Print Size: Recommend Print Size 400*400mm Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate; Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge; Total power：130W Laser power: 90W Laser output power: 20-21W Wave Length: 445 ± 5nm Engraving accuracy: 0.01mm Focusing method: fixed focus laser, no need to focus Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot. Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection. Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC12V, 5A Certification: CE FCC RoHS FDA PSE S20 PRO LASER ENGRAVER PACKAGE: 1 × mounting screw 1×tool kit 4×Foot pad foam 1×Film 3×Acrylic sheet 3 × wood chips 10×Wire tie 1×desiccant 1×brush 1×Clean cloth 1×card reader 1×TF card 1×power adapter 1×Instruction 1×data line 1×Touch screen components 1×HDMI cable 1×laser module 1×cutting pad 1×X axis assembly 1×Y axis left profile 1×Y axis right profile 1×Profile on the base 1×Under the base profile 3×foot bracket Note: ●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles. ● Please do not touch the laser emitter with your hand, or it may burn your hand. ● Please avoid strong impact on the machine.

● Children under 14 are not allowed to use this product and children over 14 need adult supervision. ● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
