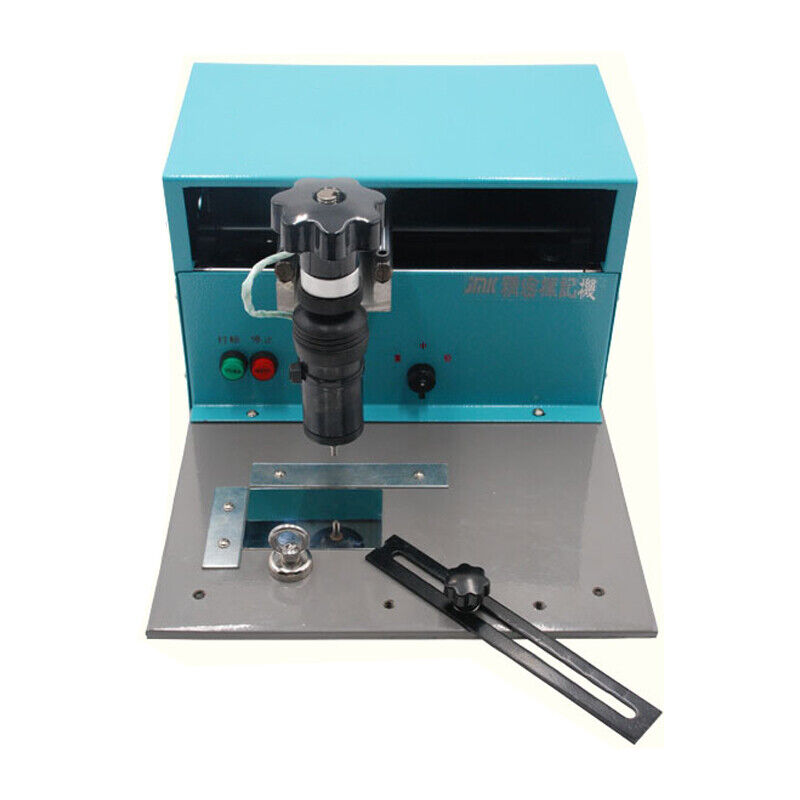

Electric Nameplate Marking Machine Sign Engraving Pneumatic Coding Machine

classifieds board Nameplate Marking Machine Engraving Machine Metal Marking Machine for steels Nameplate Marking Machine Engraving Machine Metal Marking Machine for steels Feature: 1. No need to connect the control box (easy to install) 2. Ribbon signs marking special fixtures (positioning convenient) 3. Marking small footprint, easy portability 4. Marking machine shipments safe, but without heart broken goods. 5.

High speed, high accuracy Do not need the air pump Specification marking range: 170*100mm Weight:16kg Marking height: 1-50mm Dimension; 365*270*200mm Especially suitable: Medium-volume and precision requirements of customers Runtime: windows 98, Me, 2000, Windows XP, WIN7 (connected to a computer via USB) Software systems: industrial marking engraving system (including: industrial printing systems, graphics editor, graphic converter, font editor, engraved database management system) Print content: Various character, serial number, VIN code and graphics security tag Support barcode: external barcode printing bar codes Print Range: 170 × 110 mm (can be customized according to requirements) Rotating upgrade: external rotation fixture for circular marking Repeat printing precision: 0.08 mm Print Depth: 0.02 ~ 2mm adjustable (depending on the material may be) Workpiece hardness: = 0.6 Mpa (the actual use of 0.2 ~ 0.4 Mpa) Operating temperature: 5 to 45 degrees Impact frequency: more than 200 Hz As many as hundreds of font support All of our products are shipped from China,We are not responsible for any custom duty or import tax fee , it is buyer’s responsibility.
