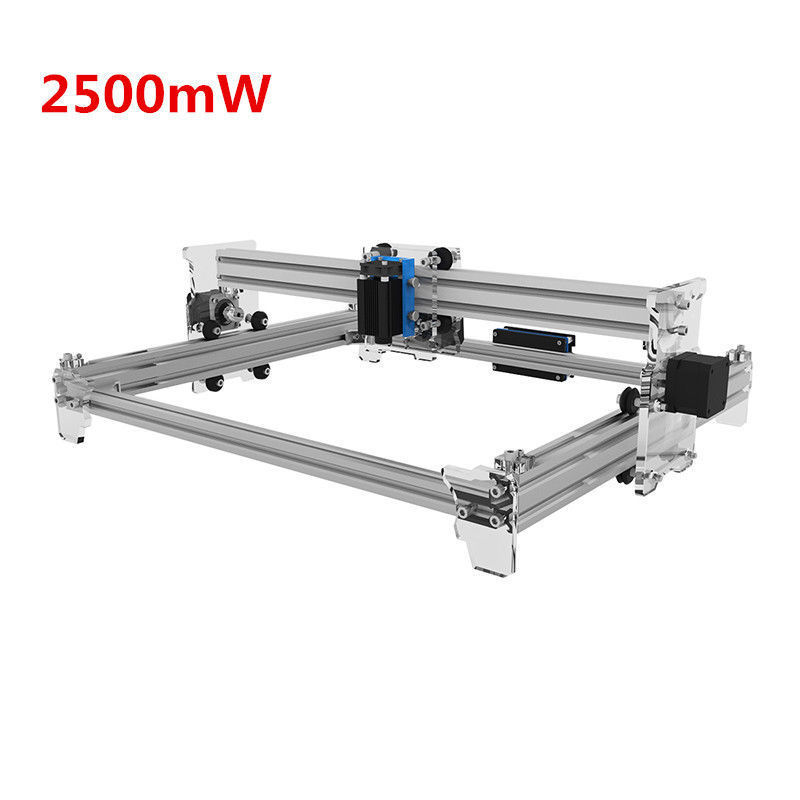

EleksLaser-A3 Pro 2500mW Laser Engraving Machine Cnc Laser Printer

EleksMaker® EleksLaser-A3 Pro 2500mW Laser Engraving Machine CNC Laser Printer Specifications:BrandEleksMakerModelEleksLaser-A3 pro 2.5WControl BoardEleksMana SECommunication PortMircoUSBLaser Quick ReplaceSupportStepper Motor42H34S-1304APower InputAC100-240VSysytem SupportWin XP/7/8/10Engrave ModePhoto, Word, Scan, outline, Pixel Laser EngravingSupported Formatsjpg, bmp, svg, G-codeMaterialStainless Steel and AcrylicWorking VoltageDC 12VWorking CurrentDC 2.5ALaser Power2.5W / 2500mWControl Software SystemCandle, EleksCam, T2-Laser, Benbox, GrblController, LiteFire, Laser GRBL, etc.Engraving Accuracy0.01mmEngraving Area30x40cm / 11.81 x 15.75inch (maximum)Engraved object height limitatiion No LimitationPackaging Size58x40x14cm / 22.83x15.75x5.51inch (L*W*H)Assembled Product Size60x46x18cm / 23.62x18.11x7.09inch (L*W*H)Package Weight4.60kgCan EngraveWood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.Can not engraveMetal, Stone, Ceramics, Glass, Reflective or Transparent MaterialCertificationCE, FCC, FDA(Please contact us if you need them)Functionideal for amateur laser engraving usage low-light positioning and freedom positioning functions.Features30X40cm ultra large engraving area,gantry shape design, no engraving height limitation.Three stepper motor drive providing faster moving speed.2500mW violet laser module with heatsink, high laser engraving power and long-term available.can print any pictures easily Package List:PartsQuantity PartsQuantityAluminum Stick5M6x15 Inner-hexagon Screws12Acrylic Board9M5x10 Inner-hexagon Screws8Stepper Motor3M5x10 Inner-hexagon Screws8Motor Drum in-phase3M5x30 Inner-hexagon Screws10Laser Module1M5x50 Inner-hexagon Screws5Corner Fitting4M3x16 Inner-hexagon Screws4Driver Board1M3x12 Inner-hexagon Screws14Synchronous Belt1M3x12 Module Fitting Screws412V Power Adapter1M5x10 Nylon Column20USB Data Cable1M3x4 Nylon Column4Goggles1M3 Screw Nuts4Bobbin1M5 Spacer10Motor Cable3M5 Screw Nuts35Cable Slot2POM Bearing Wheel15Belt Clip6Parts Box1 Spanner4 Tips: The EleksCAM Instruction and software download link is here: Click Here The benbox Instruction downloading link is: Click Here The benbox firmware is here(How to RST ROM):Click Here Note: 1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin! 2. This is a whole assemble set and needs to assemble by your own. 3. Please note that the laser module should work less than half an hour per time, and then work again after cooling down. 4. The warranty period of laser module is one month.

If you have any quality problem(Except individual situation like using the laser module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thank you. 5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video. It can effectively save your time and energy if you send the video to us with the problem description.

Thank you in advance. FAQ: 1. How to assemble the kit? The assemble and connection manual link is here:Click here You can also watch the video to do it:Click here 2. What software can support this machine?

And what image format? Engrave Mode? Supported Software: EleksCam,Candle, T2-Laser, Benbox, GrblController, LiteFire, Laser GRBL, etc. Supported Image Format: jpg, bmp, svg, G-code Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving 3. What system can the EleksCAM support?

PC Win XP 7/8/10 , Laptop is ok, too. 4.My laser doesn't work, what should I do? If the machine does not work, it might because: ① Laser module/ driver board/motor/power supply is broken. Please check which part is the main problem, and then send us a video to prove it. Or you can send us a video about your software setting, working laser and driver board.

We will analyze it and give you a solution. ② The kit misses some accessories. Please compare with the instruction and tell us, we will send it to you for free. ③ The wire connection is wrong. Please check the connection like the picture shown.

④ Your computer could not support the software. Please use Win XP 7/8/10 to check it. ⑤ Software problem. Please check whether wires are inserted rightly. And then check your data setting.

5: My software shows: Not data, what should I do? There might be two reasons. ① You did not open Administrator privileges to run the software. Please try this. ② Your computer architecture is incomplete: check whether VC ++ and.

Net and directX are installed, and have to turn off the virus. 6. Can I regulate the laser power or the laser power is adjustable? Our new Mana SE controller board can adjust the power. Please download our ElekesCAM software to do it. 7. Can I upgrade stronger power laser module by myself?

Can I extent rail frame? Yes, you can.DC12V laser module can be installed on this machine. The red is positive. You can also extent the frame by yourself, but we do not provide rails. Please note that. 8.

If my laser is broken and I might find the reason(Or I could not find) . What should I do? ① Find the reason: Take a video to prove the part is broken and then send it to us. We will give you a solution according to your video. ② Could not find the reason : Check the Question 4 first.

If the problem could not be solved, please feel free to contact us with a video. The video should contain software setting, broken part details and the power-on machine. We will solve it asap.Important information: We are not responsible for any extra fees you might have to pay to customs.please check with your countrys costumes before ordering.
