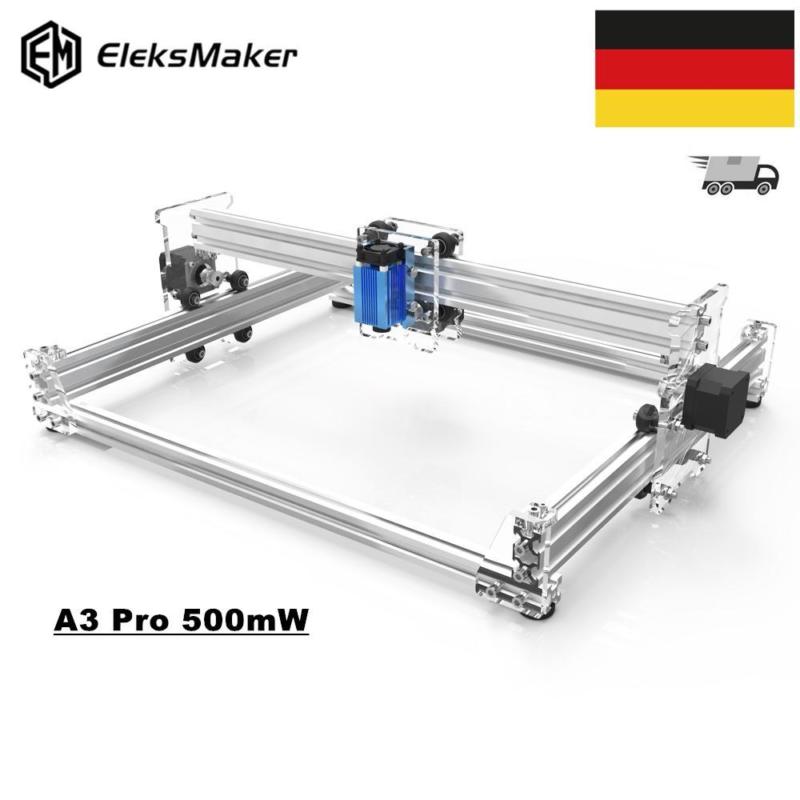

Elekslaser A3 Pro 500mw Desktop Usb Laser Gravur Carving Maschine Graveur Z1G4

This brand new EleksLaser A3 Pro is especial designed for DIY Laser Engraving Machine with professional control software, giving you extreme portable experience. This laser engraving machine features the function of print carving & cutting. This DIY laser engraving machine with higher precision and higher stability than the old version is great for DIY engraving. It supports adjustable laser power, convenient and suitable for all kinds of flammable materials. Features: Desktop DIY laser engraving machine for laser carving and more cost-effective than normal engraving machine.

Support our professional English design software for Win 7, XP, Win 8, Win 10. 300mm x 380mm large carving space, moveable gantry shape design, no engraving height limitation. Y axis double motor, three stepper motor providing faster moving speed. 500mw / 1600mw / 2500mw / 5500mw optional laser module with heatsink, high laser engraving power and long working time. Can print any pictures easily and can be directly read in JPG, BMP, SVG.

Unique frame and weak light automatic positioning makes the image positioning easier. The upgraded metal clamp can quickly replace laser and other peripherals. The laser focal length can be adjusted up and down. Newly designed V groove aluminum track and matching roller bearing for higher accuracy and better stability. Adjustable laser power, achieve all kinds of effects.

Come with a pair of protective glasses to protect your eyes from getting hurt by laser. Wide application: can be used for print, hand tools and industrial processing. Aluminum and acrylic body with fine workmanship show excellence in quality. Interesting to install and use, perfect gift for engraving DIY enthusiasts. NOTE: 1.

DIY Kit, Need To Assemble By Yourself. ( I nstallation link: https://wiki.eleksmaker.com/doku.php? Id=elekslaser_a3_a5_pro ) 2. Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin! 3. Materials can be engraved: wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet or other flammable plastic (such as phone case, mouse, pencil, name card, wallet, plastic comb). 4.

Materials can’t be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material. Specifications: Brand Name: EleksMaker Model: EleksLaser A3 Pro Material: Acrylic + Aluminum Main Color: Silver Power Supply: AC 100-240V Output 12V 5A Plug Type: US / EU / UK (Optional) Laser Power: 500mw / 1600mw / 2500mw / 5500mw (Optional) Laser Wavelength: 405nm (500mw), 445nm (1600mw/2500mw/5500mw) Supported OS: Win 7, XP, Win 8, Win 10. Controller Board: EleksMana SE Communication Port: Micro USB Stepper Motor: 42H34S-1304A Supported Software: Supporting GRBL (Candle, EleksCam, -Laser, GrblController, LiteFire, Laser GRBL, etc.) Supported Formats: jpg / bmp / svg / G-code Image Size: No Limitation Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving Laser Quick Replace: Support Need to Be Built Up: YES Continuous Work Time: ≤ 3 Hours Working Voltage: DC 12V Working Current: DC 5A Engraving Accuracy: 0.5mm Engraving Area: 300mm x 380mm / 11.81inch x 14.96inch (Maximum) Engraved Object Height Limitation: No Limitation Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material. Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc. Can Cut Objects: Paper-thin, light wood, sponge paper, felt, fabric, sticker.

Certificate: CE, FCC Item Size: 600 * 460 * 180mm / 23.62 * 18.11 * 7.09in Item Weight: 3.4kg / 7.49lb Package Size: 58 * 40 * 13cm / 22.83 * 15.75 * 5.12in Package Weight: 4.9kg / 10.80lb Package List: ( DIY Kit, Need To Assemble By Yourself.) 5 * Aluminum Rod 10 * Acrylic Board 3 * Stepper Motor 1 * Holder 1 * Power Supply 1 * Screw Box 1 * Glasses 1 * Control Board 1 * Laser Module 4 * Cable 1 * USB Cable 1 * Bobbin E2348EU-500
