Engraving Cutter Machine 33W Laser Engraver For Wood/Panels Atomstack S30 Pro

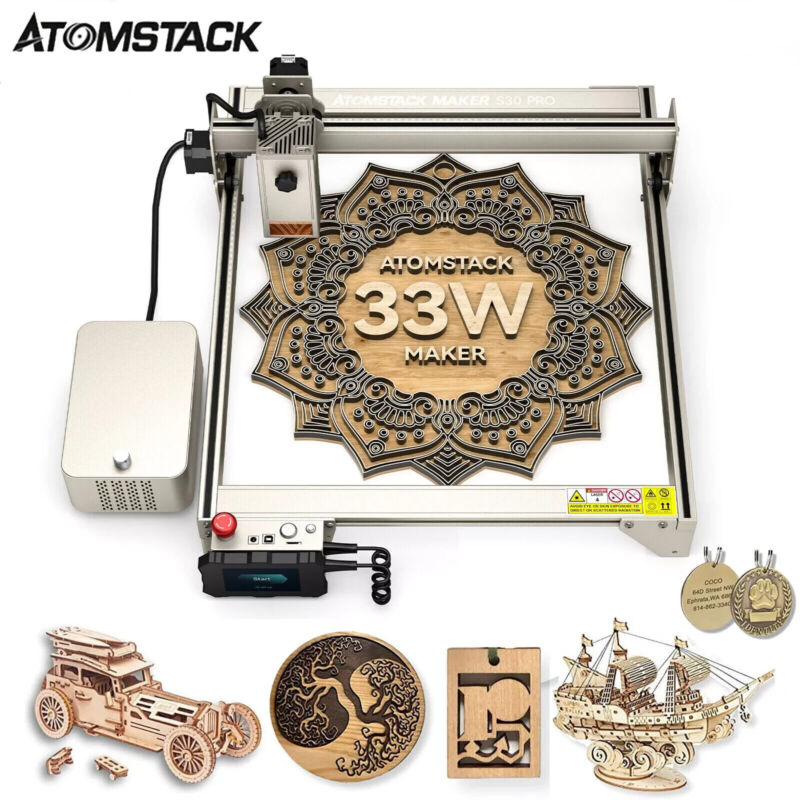

The World's First 6-core Diode 33W Laser.20mm wood Cutting in One-PASS.10mm Black Acrylic Cutting in One-PASS.It can cut 0.05mm thin sheet metal.Fixed-Focus, Air Assist.0.01mm Engraving Accuracy.Offline Engraving.App Connection.400*400mm.33W Laser Output PowerAtomstack S30 Pro is the world’s first 33W laser output power laser engraver, it has the latest 6*6W laser coupling technology (ultra-fine laser spot size is reduced to 0.08*0.1mm) that can cut 18-20 mm paulownia board and 10mm black acrylic board in one pass and even can cut 0.1mm stainless steel sheet. The high-density laser can easily cut 25mm wood board and 30mm black acrylic board through multiple time works. It can also directly engrave on mirror stainless steel, ceramic, opaque glass, etc.High Working EfficiencyCompared with a 10W laser engraving machine, S30 Pro has a 200% higher cutting speed and 150% higher cutting depth. Compared with a 20W laser engraving machine, S30 Pro has a 50% higher cutting speed and 25% higher cutting depth.Upgraded F30 Pro Air Assist KitEquipped with F30 Pro, the cutting ability of the S30 Pro is greatly improved, and the cutting accuracy and quality are also greatly optimized.Newly Updated 32-bit MainboardBuilt-in 256-bit color levels make the engraving result finer and the contrast higher, so that your engraving will not just be black.Upgraded Laser ModuleThe new S30 Pro laser module has a built-in tool-free focus module and a built-in air-assist system, without the interference of wires, simple and beautiful. Besides, the laser sintering temperature reaches as high as 3,000 Celsius.Offline Engraving Supported Atomstack S30 Pro is equipped with a terminal control panel that supports offline engraving.

You can perform engraving when there is no computer available.Filter Panoramic Eye ProtectionThe panoramic-filtered glass cover filters 97% of UV light and protects your eyes well. The user and people around can watch laser engraving without goggles.Easy to InstallThe all-aluminum anodized structure design makes the machine strong and improves the engraving precision. The installation can be completed within 20-30 minutes.Safe and ConvenientIt also has an emergency stop button, limit switch, and reset switch, which can bring a safer working environment. With the modular design of the fuselage mechanism, you can get 400*850mm super large engraving size by replacing the frame components. (Extension kit is not included)SpecificationGeneralBrand: ATOMSTACKType: Laser EngraverModel: Maker S30 ProSpecificationWorking Area: 400*400mmEngraving Material: wood, bamboo, cardboard, plastic, leather, PCB, aluminum oxide, non-reflective plated and painted metal, 304 mirrors stainless steel, glass, ceramic, cotton cloth, slateCutting Material: cardboard, nonwoven fabric, wood board, acrylic, some thin plastic sheets, spongeTotal Power: 160WElectric Power: 120WLaser Output: 33-36WWavelength: 455±5nmEngraving Accuracy: 0.01mmFocusing Method: Fixed-focus laser, no need to focusLaser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spotCompatible Software: LaserGRBL (Windows) and LightBurn (Windows & Mac)Supported Files: NC, BMP, JPG, PNG, DXFData Transfer Method: USBInput Voltage: 100-240V AC, 50/60HZOutput Voltage: DC12V, 5AWeight & SizeProduct Weight: 10.6kgPackage Weight: 14kgPackage Size(L x W x H): 575*255*230mm Package Contents2 x Support Beam1 x Y-axis Left Slide Rail1 x Y-axis Right Slide Rail1 x Control Box1 x Display Screen1 x Laser Head1 x Power Adapter1 x Safety Glasses1 x X-axis Rail1 x Air-assisted Machine1 x Power Cable1 x USB Cable1 x User Manual
