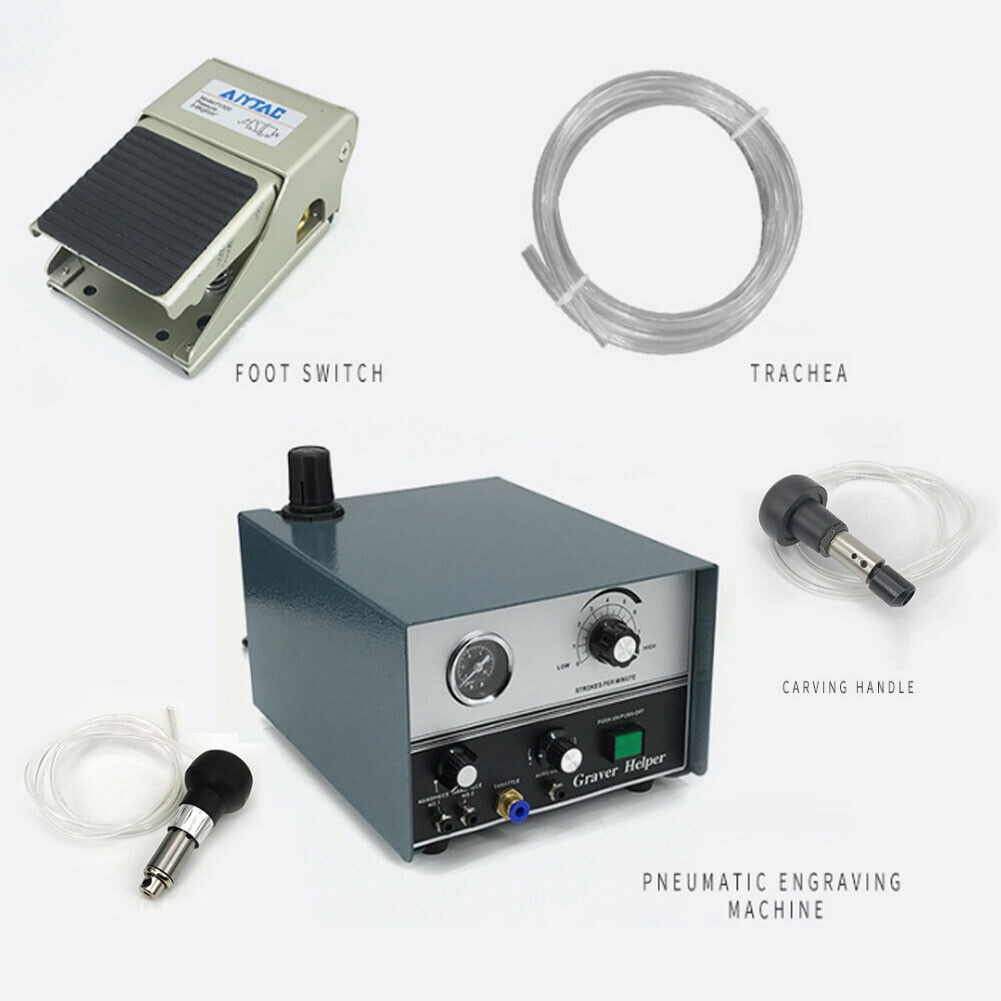

Gold Silver Metal Engraving Marking Carving Faceting Machine Graver Helper 110V

Specification： air pressure 0-3kg/cm2 Voltage 110V Power 60W Weight about 7.5kg RPM 10-4000 r/min Diamesion 205*150mm Packing Size 35X32X30cm Installation: 1: size carved handle. Foot opening panel interface connector. 2: the air compressor trachea insert air intake on the back of the engraving machine, it is recommended that theinstallation of relief valves and water separation filter, air compressor and engraving machine pipeline toincrease machine performance. Methods of operation: 1: The first pressure adjustment knob and rotate the handle switch shut down to avoid the pressure too greatdamage to the pressure in the table and the pressure relief valve 2: power, turn on the power switch. (Light) 3: the position of the changeover switch is set to 1 or 2 4: adjust the air pressure and speed, hand carved handle by stepping foot switch to adjust the pressure knobslowly.

Pressure gauge indicates 1.5 ~ 2KG/CM2, adjust the speed knob at the same time, the combination of the two regulation carving handle the biggest impact, pressure adjustment knob is pressed. 5 the relaxing foot switch, carving the handle to stop working, as shown below loaded tool! 6: size carved handle switch, turn the the conversion handle set and 2 and 1osition (should go to bits) 7 rotary engraving handle work, turn off the power switch, open the rotating handle switch, adjust the pressureknob. 8 hours of work with the footswitch opening increases smooth small to large control impact Maintenance: 1 engraving machine used for a period of time, it should be the back of the machine reducing valve cupsdrained. 2 to mechanical oil adding an appropriate amount of the 10th size carved handle!

3 If the fault, not blindly demolished, the staff checks and maintenance. If you need 220V, please contact us
