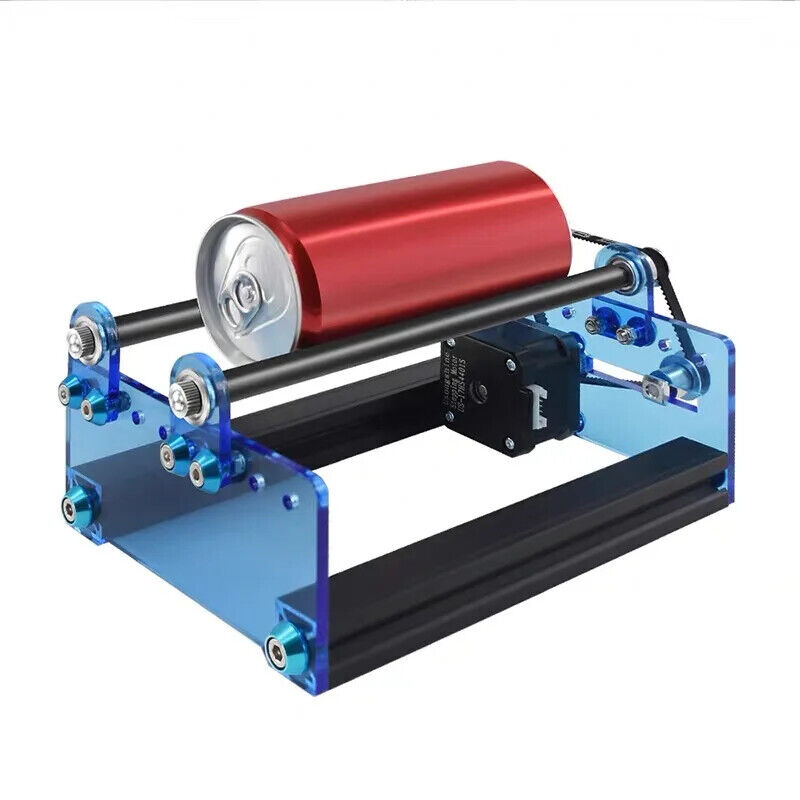

Laser Engraving Machine Rotary Platform Rotary Module Laser Marking Machine

Laser engraving machine accessories, engraving machine rotating roller platform, cylindrical Coke can thermos cup marking Product name: Engraving machine rotation module Number of phases: 2 Rated voltage: DC 3.6 V Phase resistance (20°C): 2.4X(1±15%)2/phase Holding torque: ≥420mN, m Steering (viewed from shaft extension) A -AB-B-clockwise Maximum no-load operating frequency: ≥1900 PPS Electrical strength: AC600V/1mA/1S Moment of inertia: 57.3 g.cm² Step angle: 1.8° ±0.09° Rated current: DC 1.5 A/phase Phase inductance (1KHz): 3.7X (1±20%) mH/phase Positioning torque: 15 mN.m REF. Maximum no-load starting frequency: ≥1500 PPS Insulation resistance: ≥100 MΩ (DC 500V) Insulation level: Class B
