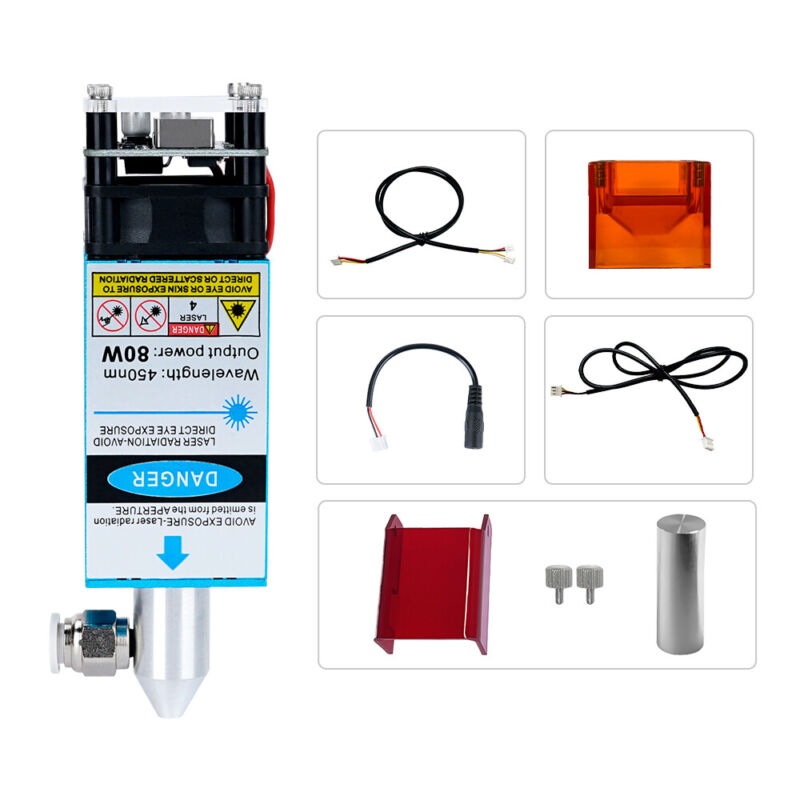

Lunyee 80W Laser Module Head With Air Assist For Cnc Engraving Cutting Machine

1. With Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks. 2. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel 50mm/s. 3. Remarkable cutting ability: Cutting through 5-8 mm thickness plywood by one pass at speed of 1.5mm/s. 4. Fixed focus laser head: suitable for CNC/Laser engraving machine, easy to install. 5. Original diode: Original diode, high quality, 10,000 hours life time!

6. Strong compatibility: Suitable for various types of laser cutting machines and engraving machines. 80W Laser Module : Laser wave length:450nm Laser output power: 10~11W Laser Spot :0.08* 0.08mm Laser shell material: aluminum alloy Circuit Board Size: 40*40mm Circuit Board:12V PWM modulation board Input voltage: 12V Max Input of laser module: 3~3.5A Fan speed: 10000 rpm Operating temperature: -20 ℃ to 70 ℃ Wire Rod:HY2.0, 3Pin terminal (Yellow:PWM +,black: GND, red: VCC ) Laser protective cover: Red cover protects the users eyes Laser type and fixed focus method: fixed focus laser, fixed focus through 40mm measuring column [Applicable Materials] Engraving materials: paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic Cutting material: thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic boar Way1: With The Air Asssit Nozzle The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks. To make full use of the air assist, please prepare an assist pump and air tubing by yourself.

Recommended Air Tubing inner diameter:5mm inner diameter, 8mm outer diameter Recommended air pump pressure: 150kPa Way 2： With The Laser Protective Cover When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience. Actual Power Measurement
