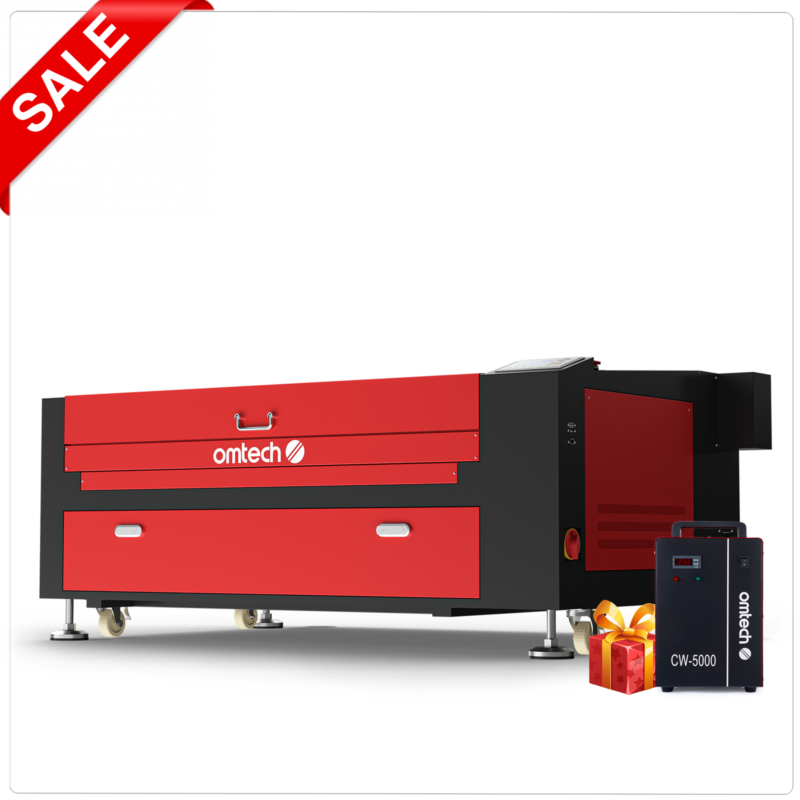

Omtech 100W 24x40 CO2 Laser Engraver With CW-5000 Water Chiller Cutting Machine

Bring your ideas to life with OMTech's 100W CO2 laser cutter & engraver! This 100W CO2 laser engraver continues to uphold our high standards with its dual 24x40 inch workbeds, long-lasting laser tube, rapid autofocus, efficient exhaust system, and front and back pass through doors that allow large pieces to be worked on. It provides precise engraving on a variety of nonmetallic materials including wood, glass, acrylic, leather, fabric, cardboard, and more at speeds up to 23.6 ips, creating stunning personalized designs for home decoration, event celebrations, and business production. Safe as can be, this laser engraver and cutter automatically cuts off the laser beam if the protective cover is opened and provides an installed air assist to blow debris clear of the laser as it is created. When your work is done, just unlock the casters and wheel it anywhere you want for easy storage and quick transport.

FEATURES DIGITAL CONTROLLER The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, via Windows-compatible RDWorks v8. HIGH SPEED 100w Lightning-fast cutting and engraving speed up to 600mm/s, with a cutting depth of up to 10mm. A pinpoint 0.025mm laser beam, cleanly cuts a wide range of materials. HONEYCOMB AND KNIFE BEDS This engraver includes 2 workbeds—one honeycomb and one aluminum blade—for handling projects large and small with maximal safety and efficiency. POWERFUL CO2 LASER TUBE Our 1450 mm CO₂ laser tube provides 100W of power for up to 12000 hours when consistently used at lower settings TWO-WAY PASS-THROUGH The two-way pass—44.9 x 2 in.

(1140x50 mm) on either side— lets you cut larger materials RAPID AUTOFOCUS Eiminate manual adjustments & guesswork in laser focusing at the push of button. SAFE OBSERVATION The widened viewing window is made from flame retardant material to ensure lasting safe use, while the built-in air assist removes smoke and dust. STRONG TWO YEAR WARRANTY 2-year warranty on machine parts and hardware ( exclusions apply) ; 12-month warranty on 150W CO2 laser tubes and power supplies. WATER CHILLER INCLUDED This powerful laser engraver comes with an industrial-strength water chiller to keep the laser tube nice and cool no matter your project. CRAFTED BY YOU Discover laser creations crafted by our customers, sparking your own creativity.

SPECS & PACKLIST SPECIFICATION Rated Power 100W Workbed Adjustment Electric Dimensions 60.6 x 37.4 x 26 in. (154x95x66 cm) Front/Back Pass Size 39.3×1.9 in. (1000×50 mm) Net Weight 353 lb. (160 kg) Positioning Accuracy ±0.0004 in. (±0.01 mm) Input Power 110V/60Hz AC Included Software RDWorks 8, CorelLaser Power Consumption 1500W Max.

Cutting Speed 15.7 ips (400 mm/s) Processing Area 24 x 40 in. (600x1000 mm) Laser Tube Length 57 in. (1450 mm) Maximum Processing Speed 23.6 ips (600 mm/s) Laser Tube Diameter 2.4 in. (60 mm) Max. Engraving Depth 0.4 in.

(10 mm) Operating Systems Windows 2000, XP, Vista, 7, 8, 10 Workbed Height Range 4.7 in. (120 mm) Transfer Interface Flash Drive, USB Cord, Ethernet Cord Item Qty. Item Qty. 100W CO2 Laser Engraver 1 CW-5000 Water Chiller 1 Power Cord 1 Exhaust Pipe 1 USB Flash Drive 4 Pipe Clamp 1 USB Cable 1 Water Pump 1 USB Flash Drive 1 Water Pipes 2 Ethernet Cable 1 Wire 1 Double-Sided Tape 1 Keys 4 Wrench Set 1 User Manual 1 Tube of Silicone Insulation 1 Ceramic Resistor 1 YOU MAY ALSO LIKE Model AF-2440-100 AF-2440-100 AF-2440-100E AF2440-100E AF2440-100E Power 100W 100W 100W 100W 100W Workbed Size 24×40 in. 24×40 in.

24×40 in. 24×40 in. 24×40 in. Front/Back Pass-Through Yes Yes Yes Yes Yes Side/Side Pass-Through No Yes Yes Yes Yes Focus Autofocus Autofocus Autofocus Autofocus Autofocus with Water Chiller No No Yes Yes No
