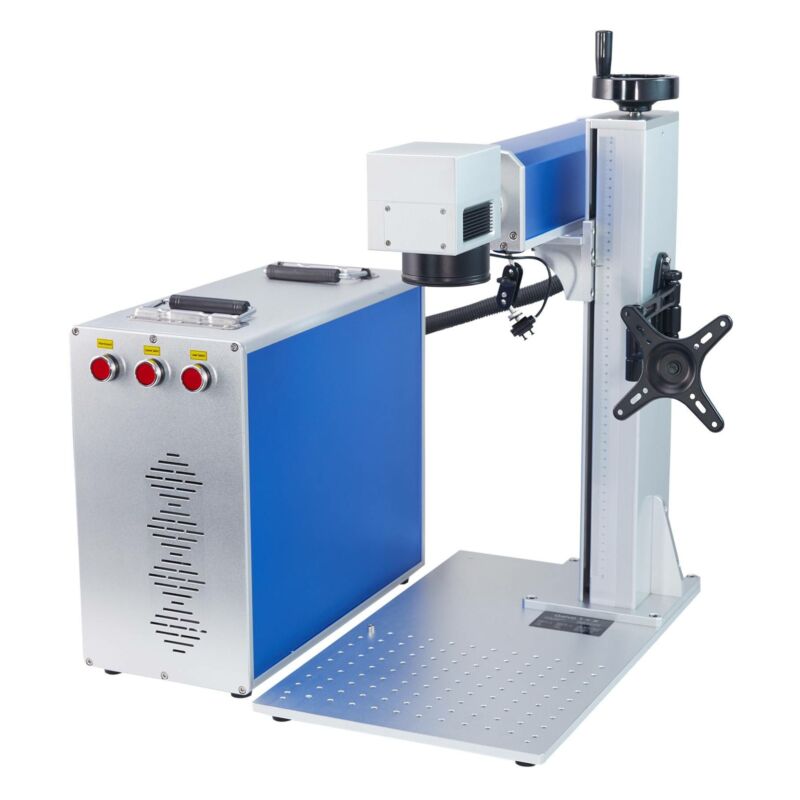

Omtech 30W Fiber Laser Marking Machine 20cm X 20cm Metal Laser Engraver

Material: Metal

Type: Engraving

Laser Power: 30W

Laser Wavelength: 1.064μm

Laser Pulse Repetition Rate: 20k - 60K Hz

Positioning Accuracy: 0.01mm

Minimum Line Width: 0.01mm

Marking Area (mm): 200X200mm

Marking Speed: 0-8000mm/s

Minimum Character Size: 0.2mm

Single Marking Depth: 0.005mm – 1mm

Best Distance between Laser Lens and Material Surface: 260mm

Vertical Stroke of Lifter: 50cm

Working Life of Laser Generator: 100000 hours

Cooling Method: Air

System Voltage: 220V 50Hz

System Power: 400W

Interface Port: USB 2.0

Working Temperature: 5-35 ℃

Working Relative Humidity: 5-85%

Software: EZCADLaser Marking Software (included in the package)

Software Compatible OS: Windows7, Windows8, Windows10

Compatible Image Formats: BMP, JPG, TGA, AI, DXF, PTL, PNG, TIF, DX

Certification: CE, FDA
