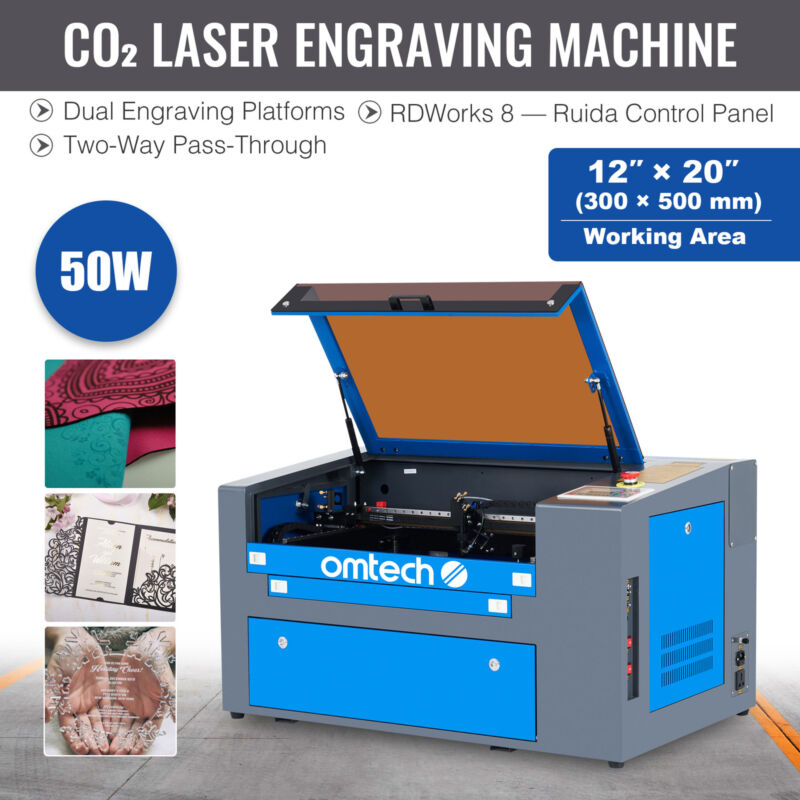

Omtech 50W CO2 Laser Engraver Engraving Carving Printing 300× 500 Mm Work Bed

OMTech 50W CO2 Laser Engraver Cutter Marker Etcher Engraving Cutting Machine with 12"x 20" (300 x 500 mm) Workbed (MF1220-50) Our Mid-Range CO2 Laser Engravers — known for efficient engraving speeds and considerable cutting capabilities. Ranging from 50W to 80W, these laser engraving machines engrave effectively and cut through 6 mm to 9 mm (.25" to .35") thick plywood and acrylic. Start your laser engraving journey with a Mid-Range laser engraver by OMTech! Key Features: Two-Way Pass-Through Honeycomb and Knife Beds Digital Laser Power Supply Ruida control board Features: RUIDA DIGITAL CONTROLLER: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8. USB & ETHERNET PORTS: 2 USB ports allow flash drive connectivity and a USB-to-USB PC connection.

Plus, the ethernet connection is compatible with PCs. LINEAR RAIL GUIDING SYSTEM: Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life. VIEWING WINDOW: A transparent acrylic glass viewing window allows observation throughout the laser engraving process. Plus, it’s equipped with a sepia tint to protect your eyes from indirect laser beam exposure. RED DOT GUIDANCE: A red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies positioning sizes, allowing an effortless project setup process.

ADJUSTABLE LASER NOZZLE: The laser nozzle can extend downwards up to 1.75” or be fully retracted, allowing more control over different focal distance setups. AIR ASSIST: A pre-installed air compressor guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping your workbed cleaner and engravings more precise. TWO-WAY PASS-THROUGH: There’s always extra room! Equipped with 18"W x 1.5"H front and rear pass-through doors to accommodate materials larger than the workbed size. BUILT-IN VENTILATION: A pre-installed vent fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.

BUILT-IN VENTILATION: A pre-installed vent fan expels smoke and fumes to create a safer workspace and extend the service life of your machine. WATER COOLING SYSTEM: Pre-installed hoses along with the included water pump allow for a fast and easy setup. Only use with distilled water, ensuring it stays between 60–70°F (16–21°C). WATER FLOW SENSOR: A pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if water stops circulating through the laser tube. AUTOMATIC SHUTDOWN: The auto-shutdown safety feature stops the machine when opening the transparent window cover.

Once closed, press the “Enter” button to continue operation. Compatible Materials: LaserCutting:Acrylic,*Wood,Leather,Plastics,Fabrics,MDF,Cardboard,Paper,Corian,Foam,Fiberglass,Rubber. Marking/Engraving:Acrylic,Wood ,Leather,Plastics,Fabrics,Glass,Rubber,Cork,Brick,Granite,Marble,Tile,River Rock,Bone,Melamine,Phenolic,*Aluminum,*Stainless Steel,*Titanium Notes: *Cannot cut hardwoods like mahogany *CO2 laser machines only mark bare metals when anodized or treated. Contact us with questions on specific materials not listed, we can process a sample for confirmation. Some PVC-based acrylics can create toxic fumes when lasered.

Certifications: FDA ,CE ,ISO9001,EN ISO 11553-1 IEC 60825-1 Certification CLASS 1 LASER PRODUCT Package List 1 x 50W Laser Engraver 1 x Ethernet Cable 1 x USB Cable 1 x Power Cord 1 x Water Pump 1 x Tube of Silicone Insulation 1 x Exhaust Pipe 2 x Water Hoses 1 x Stainless Steel Clamp 1 x USB Flash Drive with Software 1 x Maintenance Tool Set 1 x Instruction Manual On 09/10/2023 at 16:08:41 AEDT, seller added the following information:
