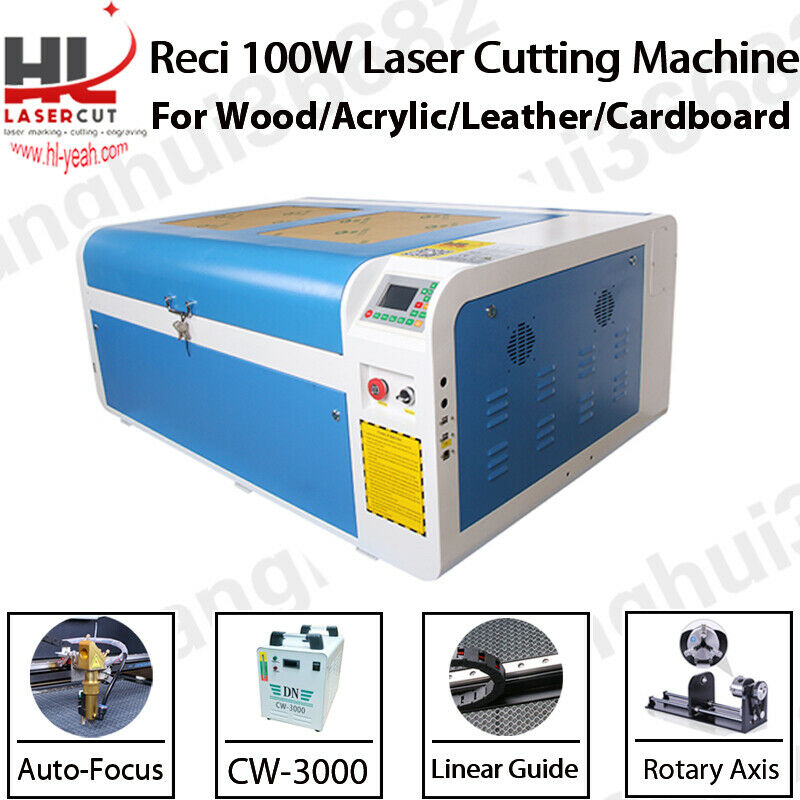

Reci W2 100W Co2 Laser Engraving Cutting Machine Engraver Cutter & Linear Guide

It will be shipped from Poland right now. -Advertising&Design staff-Craft Maker-Woodwork fans-Model fans-Leather Tailors-NOT Ready for Nowise(beginner) 1 x DSP 1060 100W C02 Laser engraving machine1 x Laser engraving software (down load link)1 x User Manual (down load link)1 x CW-3000 INDUSTRIAL CHILLER1 x Air exhaust fan1 x Air Pump1 x Communication cable and USB cable1 x Roration axis1 x Honeycomb work platformLaser Machine: 12monthsPower Supply: 12 monthsLaser Tube: 12 months 2018 New launch HL-1060 DSP 100W laser RDC6442 off-line with high-speed High configurationboard. The use of high-tech control system,Imported lens and reflector system. Use USB 2.0 off-line.It supports CAD and RDworks and CoreldRAW software ,variety of software typesetting engravingand cutting. With lifting platform.Using professional high quality laser power supply and RECI W2C02 laser tube.

The RDC6442 advantages of High-speed offline board configuration : 1. It supports RDworks and CoreldRAW and CAD software to engrave and cut. 2. The Engraving and cutting color separation work at the same time. 3. The different colors can be set for different engraving and cutting speeds. 4. File formats supported by RDworks software. 5.

The Independent DSP system, can work without a computer.Insert USB flash disk, automatic reading and processing files.By operate the DSP control, you can engraving and cutting directly. NEW! RDC6442 system is the lastest laser engraving & cutting control system developed by Ruida Technology,this control system has better stable hardware with antistatic, resistance to high pressure.Based on 3.5-inch colorfull screen human-machine operation sysytem, with better operation interface and stronger functions, exellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable laser power control interface, strong comopatible U disk drive program, multiple ways gerneral/dedicated IO control. NEW! Use RECI W2 Laser Tube NEW! Use Linear Guides,High positioning accuracy,Low coefficient of frication,Long service life,Low Noise NEW! Auto Focus function automatically calibrates the distance between the material and laser for optimum focus NEW!

Emergency Stop Button NEW! A limit switch let it can only work when the cover is closed NEW! Water Chiller w/pump CW-3000 keeps water flowing thru CO2 Tube at ambient temperature Illuminated LCD panel for automated laser head control Motorized Z-Table lowers for larger materials Adjustable Speed and Power, Smooth and Precise Engraving and Cutting USB Interface Air Assist, Remove heat and combustible gases from the cutting surface Embedded Exhaust Fan, Easier install, Safer transport. Drag - and - chain transmission line Laser focal length: 6.35CM Convenient vacuum table under the Z-table collects finished product into sliding tray Honey Comb Platform included for securing maximum material capacity Machined parts in stock for long term service and reliability Roller attachment for etching cylindrical objects Compatible with Windows 8, 7 (64 or 32 bit), XP operation systems Dedicated technical support from qualified service technicians and engineers Machine service life: 7200H at least for laser tube, 5-8 years for machine body 1-Year Warranty covers parts replacement This machine is suitable to: woodworking, textile cutting, industrial prototyping, industrial marking,signmaking,medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens,door pulls,cut scroll patterns, games & toys, finger joints, inlays & overlays,fraternity paddles, music boxes,light switch plates, jewelry boxes, parts marking, router templates,desk sets, scrap booking,photo albums, jewelry, crafts, Italian charms. Sketch map of Optical system, the laser beam is from laser tube, then reflecting mirrors and focus lens, As following: " FAQ: Q.

Can the machine engraving and cutting? A. Yes, even on the same Job, you can do setting with different colour in the software.and it can work on same time.Q. Is the machine must work with computer? A. Must connect with computer with USB cable when you change the settings of machine. For the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.Q.

Can the machine be split so it can fit into my doors? A. Sorry,it can't do.Q. How long the laser tube is working well? A. Unfortunately we cannot confirm about this, it is about 0-7200 hours.Q. Do you avaliable spare parts?

A. we can provide all of spare parts of any model we listing.Q. I have heard the mirrors need cleaning? A. Yes they do but not after every job, once a week is normally enoughQ. Can I put larger materials in the machine? A. No, the machine have not doors which opened to accommodate larger materialsQ.

How about the after sell service? A. Free tech support for the whole life of the machine, and 24 hours telephone support.Camera of classifieds board message support or other online when you need.
