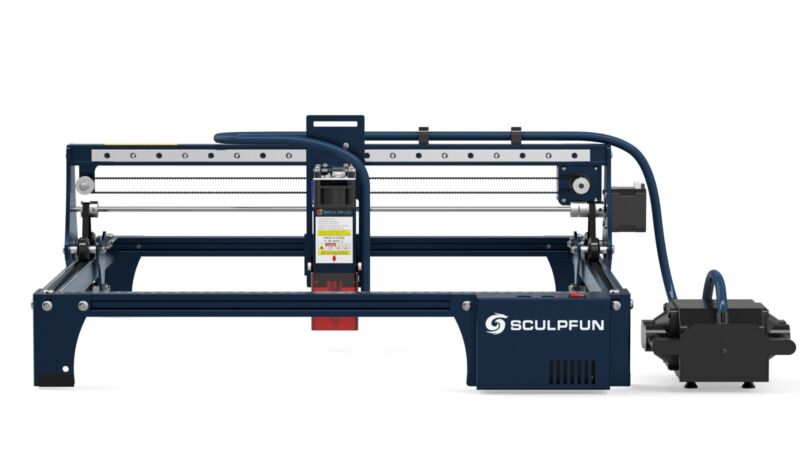

Sculpfun S30 Pro 10W Laser Engraver Automatic Air Assisted Engraving Machine

Features: 1. Automatically controlled air assist system: The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an air-assisted 32-bit motherboard and a control-type air pump, which can intelligently control the air-assisted switch during engraving through the M8 button of the lightburn software, which makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.2. Built-in high-pressure air-assisted nozzle: S30 series is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean. 3.

The S30 series adopts ultra-fine laser shaping technology, the laser focus is as thin as a hairline, and it is very powerful for engraving or cutting. The S30 Pro 10W laser is for those who cut a lot, everything is faster with it. 4. Replaceable protective lens: S30 series laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, which is very cheap and can be easily purchased from SCULPFUN. 5.

Expandable engraving area on both XY axes: S30 series adopts an innovative XY axis expandable design, the original engraving area is about 410x400mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; Purchasing the XY axis expansion kit can upgrade the 935x905mm engraving area, which can help you better handle large area engraving or cutting work.6. Upgraded 32-bit air-assist motherboard: The latest 32-bit motherboard supports automatic air-assist control function. 7. Industrial-grade cutting accuracy: S30 series adopts extremely sturdy 0.005mm high-precision linear slide X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines. 8. Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses.

Also if you don't need it, you can easily disassemble it. 9. Sturdy and durable frame: S30 series is made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.10. Safety design: The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards.

There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency. 11. Right-angle measuring ruler: There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to measure the size of the engraved object quickly. The 410x400mm large-area engraving range can meet your various engraving needs. Specifications: Product model: SCULPFUN S30 ProLaser Information:Diode laser output power: 10W (note that this is light energy not electrical energy)Laser focus: 0.06x0.08mmLaser wavelength: 455±5nmFocusing method: Fixed focus column + sliding deviceLaser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.Machine Information:Engraving accuracy: 0.005mmEngraving area size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mmMachine electric power: about 60WAir pump:Type: Mainboard-controlled air pump, voltage 12V, flow 30L/minAir hose inner diameter: 7.5mmMainboard: 32-bit air-assisted mainboard, reserved for offline control function of Bluetooth and SD card (upgrade package sold separately).Engraving/cutting materials:Engraving material: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone.Cutting material: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo sheets, leather, some plastic boards, PCB boards.Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support for Windows system, support for MAC system.

Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.Data transmission method: USB connection or Bluetooth wireless connection Power supply: Power Input: 100-240V AC, 50/60Hz Output: 12V 7APackage weight: 6.85kg Packing size: 62.3*24*22.5cm Certification: CE, FCC, RoHS, FDA, ICE certificationNotes:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding! Packing List:1 x S30 Pro laser1 x Laser repair kit1 x 12V Automatic air pump3 x A4 size 3mm wood board 2 x Limit switches1 x 12V 5A Power adapter1 x Power cord1 x USB cable1 x Air pipe 1 x Installation toolkit1 x Laser goggles1 x A4 Metal backing plateStep 1-6 Installation package1 x Manual1 x X-axis assembly2 x X Profiles2 x Y Profiles1 x Control box assembly3 x Support feet
