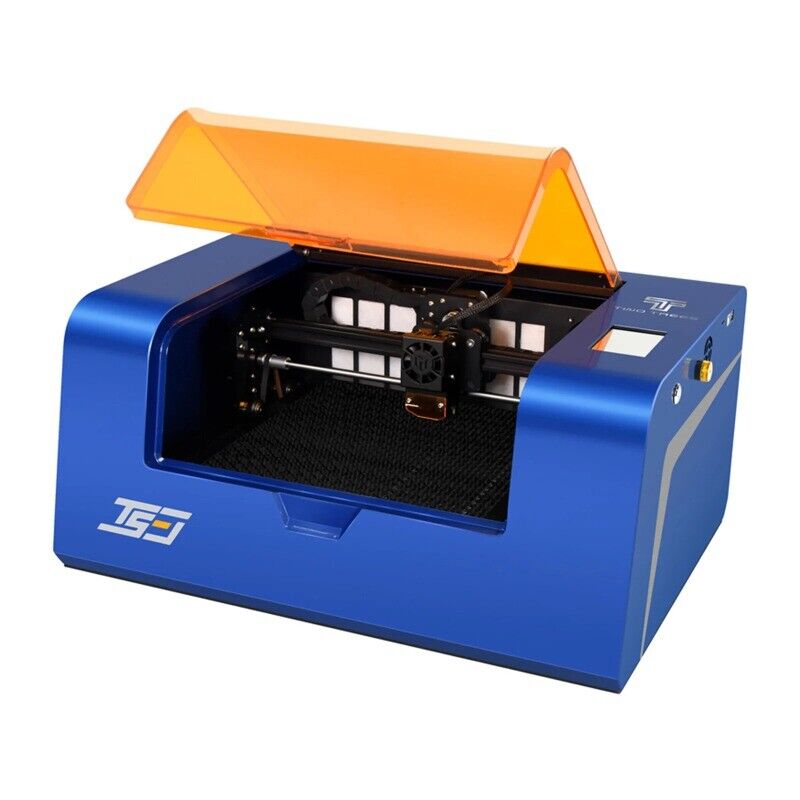

TS3 Laser Engraver Output Power 40W Laser Engraving Machine Laser Power 10W

''describe: 1. Whole machine design, no installation, out of the box; 2. Equipped with flame alarm system; high safety factor; 3. A variety of control methods: APP operation, offline operation; online operation; 4.32-bit main control chip, with stronger processing power and higher precision; 5. Y-axis dual motor design, the engraving machine is more stable during the engraving process, and the engraving accuracy is higher; 6.

With 10W high power laser module, it can engrave/cut a variety of materials 7. Safety protection design: the laser head stays for 18s for protection, and the laser light source is automatically cut off; 8. Built-in honeycomb panel engraving platform, better engraving & cutting effect; 9. Using photoelectric limit switch, high sensitivity and accurate positioning; 10. Equipped with air filtration system & exhaust system, which can filter/discharge harmful substances; 11.

Equipped with a high-precision rotary engraving module, which can engrave cylindrical objects; 12. The outer box adopts high-precision, multi-process baking paint process; 13. High-precision imported stainless steel bearings, with excellent stainless steel corrosion resistance; 14. High precision pulley, high sealing ring, dustproof and foreign body prevention, high speed; Model: Twotrees Engraving Machine TS3 10W Deluxe Edition Color: navy blue + orange Machine material: aluminum profile + sheet metal + acrylic Laser power: 10W compressed spot (combined light) Spot Compression Technology: Yes Laser wavelength: 450nm±5nm Output power: 40W Spot size: 0.08*0.08mm Height adjustment method: lifting module adjustment (manual) Focusing method: fixed focus Machine size: 570*430*270mm Engraving size: 300*200mm XY axis positioning accuracy: 0.1mm Engraving accuracy: 0.1mm Engraving speed: 10000mm/min Engraving method: USB online/APP/wireless computer WEB terminal/offline Carving material: wood, plastic, paper, leather, acrylic, etc. Software recognition format: NC, DXF, BMP, JPG, PNG, GCODE Engraving mode: graphic engraving, file engraving, scan engraving, outline engraving, pixel engraving Control board: 32-bit main control board Languages: Chinese, English, Italian, French, German Machine weight: 17.5KG Packing size: 635*505*335mm Packing weight: 20KG Power supply: 24V 4A DC Operating System: Windows, MAC Support software: Laser GRBL: open source free software, support Win XP/Win 7/Win8/Win 10 system Lightburn: Paid software, supports Win XP/Win 7/Win 8/Win11 system, Mac system Working environment: temperature 5-40 degrees Celsius, humidity 20-60%RH Certifications: CE, FCC, ROHS, FDA, IEC60825 packing list: 1.

Built-in rotary engraving module x1 2. Built-in honeycomb panel engraving platform x1 3. Built-in air filtration system x1 4. Exhaust system x1 5. Special air pipe for air pump x1'''' 6.

Whole machine*1''
