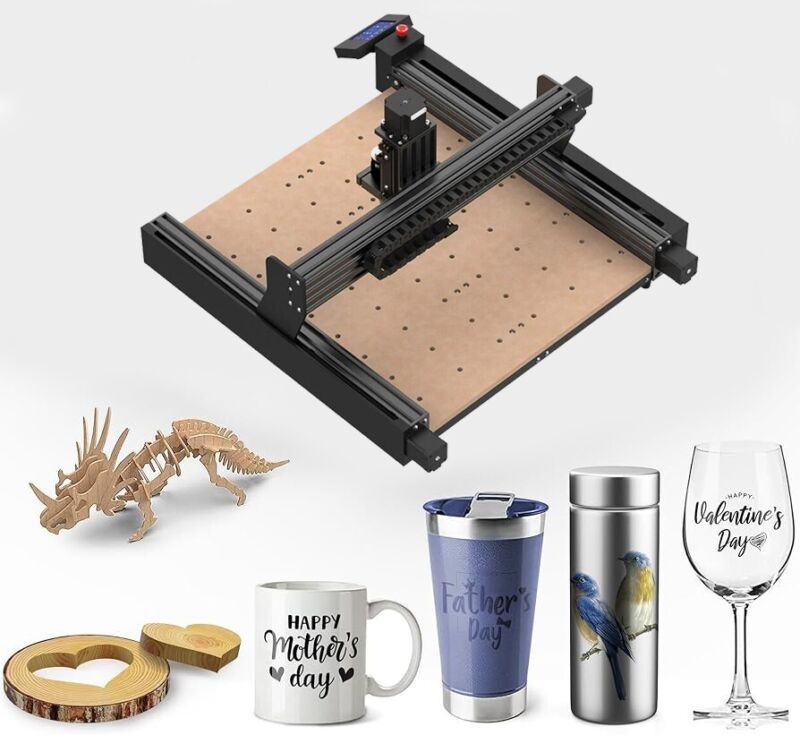

Two Trees TTC-450 Cnc Router Laser Graviermaschine 80W Laser Gravur Maschine Neu

Brand： TWO TREES Model： TTC-450 Engraving area: 460mmX460mmX80mm Power adapter power：120W, 5A, 24V Spindle parameters ： 24V 5A, 775 motor 8000RPM Tool setting： Software Control / manual / Tool setting instrument. Control Board Compatibility： GRBL Engraving speed MAX : MAX800mm/min Limit switch: X, Y, Z three-axis double limit + ESTOP Engraving accuracy: 0.01mm Stepper driver: A4988 1.3A (other drivers can be connected to the motherboard) Linear transmission mode: Built-in POM wheel Stepping motor NEMA 23 (2 phases, 1.5A) torque 20mN. M Transmission type ： T8 screw pitch 2mm lead 4mm screw / Y-axis Double Y-axis with built-in rollers Emergency stop switch Yes The motherboard adopts ESP32 highly integrated chip with low power consumption, high stability and reliability, ultra-high processing speed and large memory, supports offline controllers, supports four axes, and supports PWM laser signals. Harness management: XY energy chain Machine weight kg: 19.2kg Shipping weight kg: 20kg CAM software control: Candle Programming: CarvecoMaker, Artcam, Easel Operating system Windows XP/7/8/10, MAC OS Engraving materialsEngraving and cutting MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminum, copper, carbon fiber board, etc.
