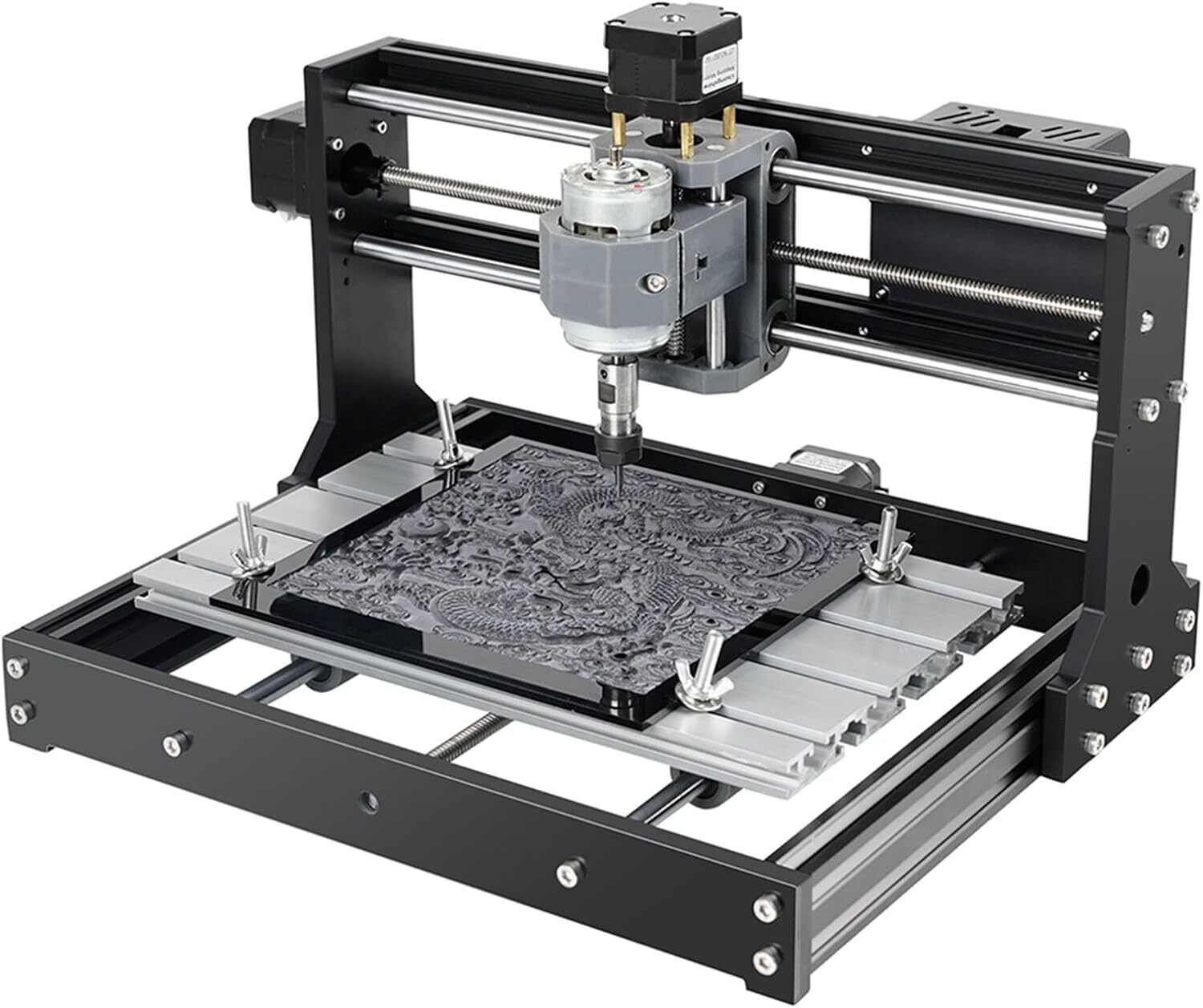

Twotrees TTC3018S Cnc Router Lasergravierer Grbl Control Laser Gravur Maschine

Introduction : Designed For The Absolute Beginner, ItS A Great Tool For Starting Cnc Learning. If You Are A Wood-Working Amateur, You Can Use It To Add Features Like Curved Words And Exquisite Patterns. If You Are A Student Just Start Learning Cnc, It Can Help You Engrave The Models You Are Coding And Designing. Advantages： 1. Manual Control: Manually Adjust The Positions Of The X, Y And Z Axes As The Starting Point Of Engraving, Manually Turn On Or Off The Spindle. 2.

Can Add Offline Controller Er11: The Offline Board Can Be Linked To The Grbl Control Board For Engraving Without A Computer. (1. Computer Connection Not Required; 2. Files Transfer Not Required, The Engraving File Can Be Directly Accessed) 3. It’S Capable For Engraving Wood, Plastic, Acrylic, Pcb, And Soft Metal Like Copper And Aluminum And Etc. (Not Capable For Engraving Hard Metal, Jade And Other Hard Items) Specifications: Model: 3018Pro Plug: US+EU Control software: GRBL Material: Aluminum + plastic Color: Silver+Black Working Area: 300*180x40mm / 11.8*7.1*1.6in Frame Size: 420*355*280mm / 16.5*14*11in Spindle: 775 spindle motor (12-36V) 24V: 8000r/min Spindle Chuck: ER11 Step Motor: 1.5A / 0.42N.m Power Supply: 24V / 5.6A ((110 V-240 V) Supported System: Windows XP / Win 7 / Win 8 / Win 10 /Linux Engraving materials: plastic, wood, acrylic, pvc, pcb and other soft materials.

Communication Port: Micro USB Lead Screw: T8 Packing : Carton Package Size: 7.1kg / 250oz Package Weight: 44*25*18cm / 17.3*9.8*7in Notes: 1. This machine is NOT assembled. You will receive all the parts in the package and you need to assemble it yourself. 2.When the engraving machine is working, please do not put any part of your body on the machine to avoid injury to your body. Use Of Method: 1.

Connect the power supply and connect the USB. 2. Install the driver. 3. To Determine your Machines COM port. 4. Open grblControl software. Package List:(DIY Kit, Need To Assemble By Yourself.) 1 * Complete Sef Parts and Installation Tools Appearances of New Control board: 1000MW laser has 2 pin wire, connect to port laser A 2500MW/5500MW laser has 3 pin wire, connect to port laser B.
