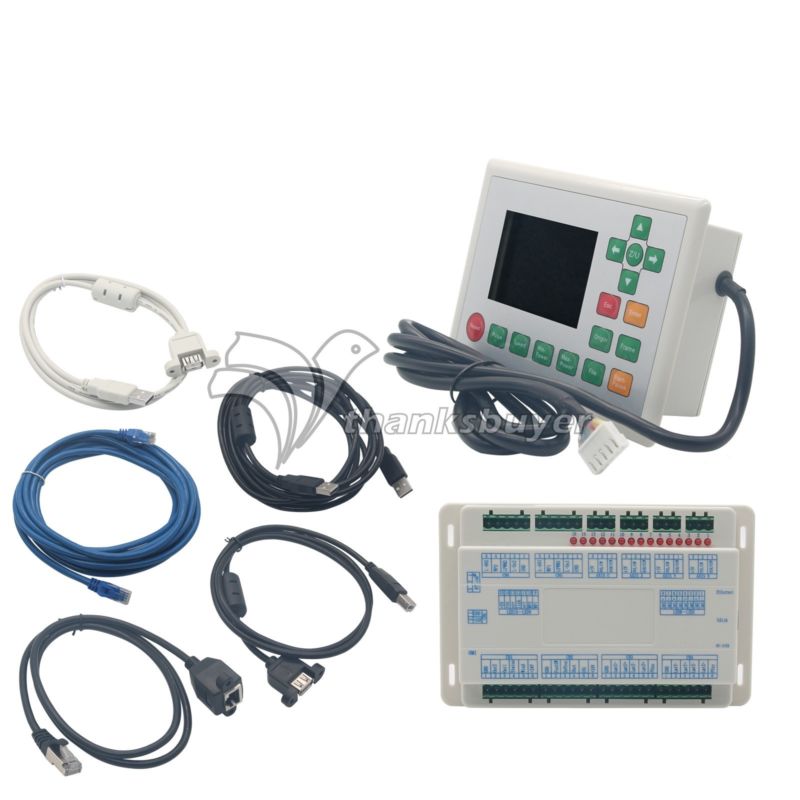

Ruida RDC6442G CO2 Laser Cutting Engraving Dsp Controller System Lcd Display

RuiDa RDC6442G CO2 Laser Cutting Engraving DSP Controller System Card 4 Axis Color Diaplay Wireless Operating Panel Features: - RDC644XG system is a new generation system for control of laser engraving and cutting, which is developed by RD technology, Ltd. - High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display. - This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility,multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system. - Digital laser control signals:TTL level output, 50 mA,drive capability(can set enable signal polarity in software); PWM frequency 2K-50K for adjustable; PWM duty ratio is 1% ~ 99%, adjustable; PWM value is up to 5.0 V - Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ - USB: Max.

Transmission rate 12M bps; The longest distance is 5 meters. - Network:Max. Transmission rate is100M; Max. Transmission distance is 200M. - Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse - Output: 4-channel, photoelectric isolated OC gate output, the max.

Drive capability 500mA drive capability (with follow-current protection). - Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level Specification: - Product Model : RDC6442G -The sixth generation controller - Controller version - 4-axis - X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen) - G: standard - Application area: laser cutting, laser engraving, laser welding etc. - Power:+24V, >2A - Temperature: 0~50 °, humidity is not greater than 70%. Connection Diagram: - Electrical Connection of Control System: - Connection of Glass Tube Laser Power: - Connection of Motor Driver: - Paqckage List: - 1 X Laser Cutting Engraving Machine - 1 X USB Connection wire - 1 X Date Wire Payment Terms: 1. We only accept paypal payment, other payment methods are not acceptable. 2.

Payment should be completed within 7 days of bid or auction closing. Or unpaid dispute will be filed for non-payer after 7 days of sales day. Shipping Terms: 1. We ship all the items to your paypal address, please make sure that your paypal address must be correct or send us a message to inform us if you want to change a address before you pay for it. 2. We ship all our buyers packages with tracking number, and all the items will be sent within 1-2 business days after payment received. 3.

Usual we offer free shipping by EUB or Paypal package, but if you would like a express delivery, we can ship your package by International EMS or DHL on the condition that you are willing to pay for the extra postage. 4. All the package which weight is over 2kg, we will ship it by International EMS or DHL as other methods can not ship to, and it commonly takes 5-10 business days to arrive you. Delivery TimeCountries7 ~ 15 daysUnited States (ship by International EUB)7 ~ 15 daysUnited Kingdom, Canada, Australia ( ship by Paypal Package) Return Terms: 1. If you receive defective item, please kindly notify us within 14 days. We will guide you the returning instruction for replacement or refund. 2.

If you purchased in improper condition, please NOTE that the sipping and handling fee will not be refund, all return shipping fee should paid by the buyer unless item DOA. 3. We reserve the right to refuse any returns for objective reasons. Custom Duties & Taxes: 1. Import duties, taxes, and charges are not included in the item price or postage cost. These charges are the buyer's responsibility. 2.

Avoiding some unnecessary trouble, please check with your country's customs office to inform us what we should declare its value before shipping. Feedback: 1. If you are dissatisfied for any reason, please don't be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. 2. If you are satisfied with the product you received, please kindly leave us a positive feedback and 5 star DSR.

If there is any problem of your order, please feel free to contact us firstly, we are responsible and credible seller, will follow it for you asap.
