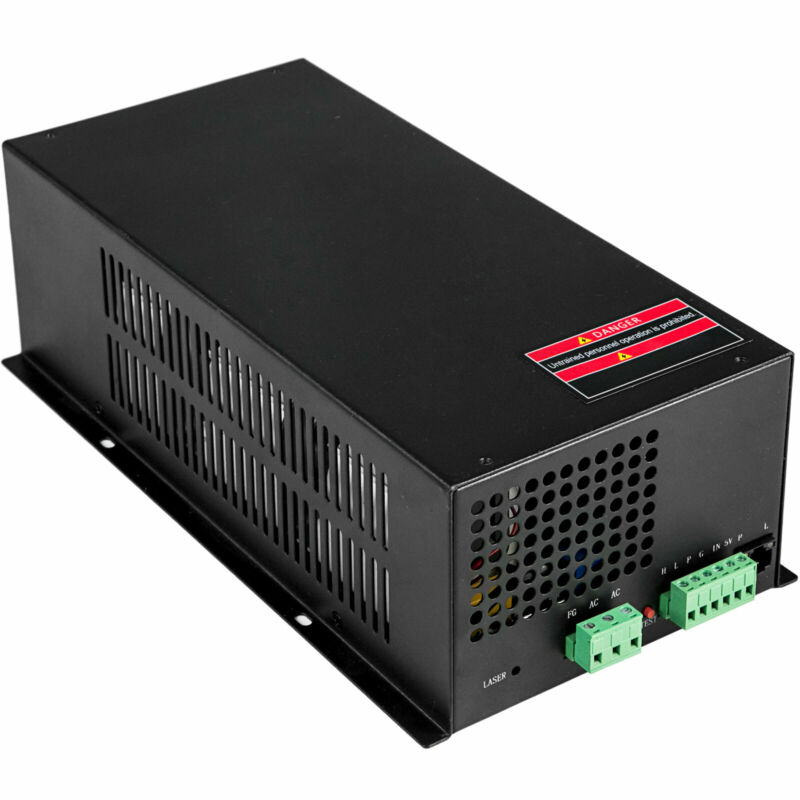

130W Laser Power Supply Ac 110V For CO2 Laser Engraver Laser Power Supplies Us

SHIP FROM CA & TX & NJ & KY DELIVERY 1-3 DAYS US 48 STATES DELIVERY DAYS : 1-4 DAYS COURIER : FEDEX AND UPS 24 HOURS SHIPPING OUT --> City of Industry,CA Houston,TX Hebron,KY Perth Amboy,NJ --> Product Description Product Description: --> Features & Details 【HIGH EFFICIENCY】- This power supply uses a zero-current half-bridge soft switching circuit, which makes the power supply highly efficient and fast in response. 【SIMPLE PORT CONTROL】- Suitable for high and low-level signals. Use the TTL level to control the laser start and stop. At the same time, a protection switch is added to detect whether there is water or ventilation outside. 【LASER POWER ADJUSTMENT】- The laser power adjustment can input 0 to 5V analog signals, can also input PWM signals.

【OPEN CIRCUIT PROTECTION】- The power supply has an open circuit protection function, which can avoid damage to the laser power supply due to the burst of the laser tube. 【FACTORY AGING TEST】- Each power supply will be subjected to a high temperature 60 ° C 12-hour aging test under full load, and the power supply test will be started and stopped 500 times in 7 seconds. Key Features High Performance Fast response speed, good effect, high performance, high cutting power, and it can extend the life of the laser tube. Easy Control The laser power supply machine starts and stop can be easily controlled by the TTL level. Simple Laser Power Control Two methods to adjust laser power: Input 0V to 5V analog signal, can also input the PWN signal.

Mark Clearly Each data is marked for your convenience. Power detection instructions: When the power is in standby, press the test switch. If the "L" light is on, the "P" light is on, and the laser tube does not output laser light, the laser tube is broken. If the laser tube outputs laser light, the laser power is normal; if the laser light is off, it means that the laser power supply is broken. Protection Function Open circuit protection function, it can be used to detect the presence or absence of waterway, protect the laser; It can better protect the laser power and prolong the service life.

Good Compatibility Co2 laser engraver power supply is suitable for a variety of CO2 laser tubes. Laser Power Supply The CO2 laser power supply is small in size, light in weight, easy to operate, and has a good matching performance with the laser tube, which can be directly connected to the laser tube. Fast response speed, good effect, high performance, high cutting power, and can extend the life of the laser tube. High Efficiency Simple Port Control: Laser Power Adjustment Open Circuit Protection Package Content--> Specification: Power: 130W Input Voltage: AC110V Maximum Output Voltage: 50KV Maximum Output Current: 35mA Efficiency: 90% Response Speed: ≤1ms Cooling Method: Fan Cooling Operating Temperature: -10 ~ 40℃ Relative Humidity: ≤90% Gross Weight:3.91kg/8.62lbs Package Size: 38x20x14cm/14.96x7.87x5.51inch Package Content: 1 x High Voltage Connector 1 x Laser Power Supply (130W) MYJG40W MYJG50W MYJG60W MYJG80W MYJG100W MYJG150W Input voltage AC110V AC110V AC110V AC110V AC110V AC110V Output voltage DC23KV DC22KV DC24KV DC26KV DC28KV DC34KV Max output current 20mA 22mA 25mA 28mA 30mA 38mA Response speed ≤1mS ≤1mS ≤1mS ≤1mS ≤1mS ≤1mS Size 165mm*142mm*78mm 165mm*142mm*78mm 197mm*161mm*91mm 197mm*161mm*91mm 230mm*161mm*96mm 305mm*161mm*96mm Cooling mode Fan Cooling Fan Cooling Fan Cooling Fan Cooling Fan Cooling Fan Cooling Efficiency 90.00% 91.00% 91.00% 91.00% 91.00% 91.00% SHIPPING ABOUT US PAYMENT RETURNS CONTACT WARRANTY Welcome to our classifieds board store. As a leading and emerging company in manufacturer and exporting business, we are specialized in Business and Industrial Products, Sporting Goods, Pet Products, Home and Garden products for more than 10 years.

We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders. We accept Paypal payment only. Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.

We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution. DELIVERY DAYS: 1-4 DAYS (1-3 DAYS FOR 99% OF US 48 STATES) 24 HOURS SHIPPING OUT SHIP FROM CA & TX & KY & NJ WAREHOUSE California Warehouse: City of Industry, CA Texas Warehouse: Houston, TX Kentucky Warehouse: Hebron, KY New Jersey Warehouse: Perth Amboy, NJ All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping.

In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation. We ONLY accept returns with original package.

Please make sure that item has NO man-made sabotage. Used items will not be accepted for return. Email Customer Support: 9:00am-2:00am PST Sunday-Friday All emails will be responded to within 12-24 hours This item comes with 24 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing. If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.

Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault. Replacement products are provided with the same warranty as the returned products. Have a question? Find answers in product info, Q&As, reviews --> About this item--> Product Description --> Laser Power Supply The CO2 laser power supply is small in size, light in weight, easy to operate, and has a good matching performance with the laser tube, which can be directly connected to the laser tube. Fast response speed, good effect, high performance, high cutting power, and can extend the life of the laser tube.

High Efficiency Simple Port Control: Laser Power Adjustment Open Circuit Protection Key Features High Performance Fast response speed, good effect, high performance, high cutting power, and it can extend the life of the laser tube. Easy Control The laser power supply machine starts and stop can be easily controlled by the TTL level. Simple Laser Power Control Two methods to adjust laser power: Input 0V to 5V analog signal, can also input the PWN signal. Mark Clearly Each data is marked for your convenience. Power detection instructions: When the power is in standby, press the test switch.

If the "L" light is on, the "P" light is on, and the laser tube does not output laser light, the laser tube is broken. If the laser tube outputs laser light, the laser power is normal; if the laser light is off, it means that the laser power supply is broken. Protection Function Open circuit protection function, it can be used to detect the presence or absence of waterway, protect the laser; It can better protect the laser power and prolong the service life. Good Compatibility Co2 laser engraver power supply is suitable for a variety of CO2 laser tubes. Specifications --> --> Package Content --> Specification: Power: 130W Input Voltage: AC110V Maximum Output Voltage: 50KV Maximum Output Current: 35mA Efficiency: 90% Response Speed: ≤1ms Cooling Method: Fan Cooling Operating Temperature: -10 ~ 40℃ Relative Humidity: ≤90% Gross Weight:3.91kg/8.62lbs Package Size: 38x20x14cm/14.96x7.87x5.51inch Package Content: 1 x High Voltage Connector 1 x Laser Power Supply (130W) MYJG40W MYJG50W MYJG60W MYJG80W MYJG100W MYJG150W Input voltage AC110V AC110V AC110V AC110V AC110V AC110V Output voltage DC23KV DC22KV DC24KV DC26KV DC28KV DC34KV Max output current 20mA 22mA 25mA 28mA 30mA 38mA Response speed ≤1mS ≤1mS ≤1mS ≤1mS ≤1mS ≤1mS Size 165mm*142mm*78mm 165mm*142mm*78mm 197mm*161mm*91mm 197mm*161mm*91mm 230mm*161mm*96mm 305mm*161mm*96mm Cooling mode Fan Cooling Fan Cooling Fan Cooling Fan Cooling Fan Cooling Fan Cooling Efficiency 90.00% 91.00% 91.00% 91.00% 91.00% 91.00% Features & Details 【HIGH EFFICIENCY】- This power supply uses a zero-current half-bridge soft switching circuit, which makes the power supply highly efficient and fast in response.

【SIMPLE PORT CONTROL】- Suitable for high and low-level signals. Use the TTL level to control the laser start and stop. At the same time, a protection switch is added to detect whether there is water or ventilation outside. 【LASER POWER ADJUSTMENT】- The laser power adjustment can input 0 to 5V analog signals, can also input PWM signals. 【OPEN CIRCUIT PROTECTION】- The power supply has an open circuit protection function, which can avoid damage to the laser power supply due to the burst of the laser tube.

【FACTORY AGING TEST】- Each power supply will be subjected to a high temperature 60 ° C 12-hour aging test under full load, and the power supply test will be started and stopped 500 times in 7 seconds. SHIPPING DELIVERY DAYS: 1-4 DAYS (1-3 DAYS FOR 99% OF US 48 STATES) 24 HOURS SHIPPING OUT SHIP FROM CA & TX & KY & NJ WAREHOUSE Caifornia Warehouse: 18501 Arenth Ave, City of Industry, CA 91748 Texas Warehouse: 300 W Airtex Blvd, Suite 200, Houston, TX 77090 Kentucky Warehouse: 2125 Gateway Blvd, Hebron, KY 41048 New Jersey Warehouse: 1000 High Street, Perth Amboy, NJ 08861 ABOUT US Welcome to our classifieds board store. As a leading and emerging company in manufacturer and exporting business, we are specialized in Business and Industrial Products, Sporting Goods, Pet Products, Home and Garden products for more than 10 years. We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders.
